A compact tractor with a mechanical transmission and a four-cylinder engine producing 50 hp, designed for more demanding users. Thanks to its size and the wide range of applications enabled by attachments connected via the rear PTO, it offers excellent versatility for a variety of tasks.
Not rated

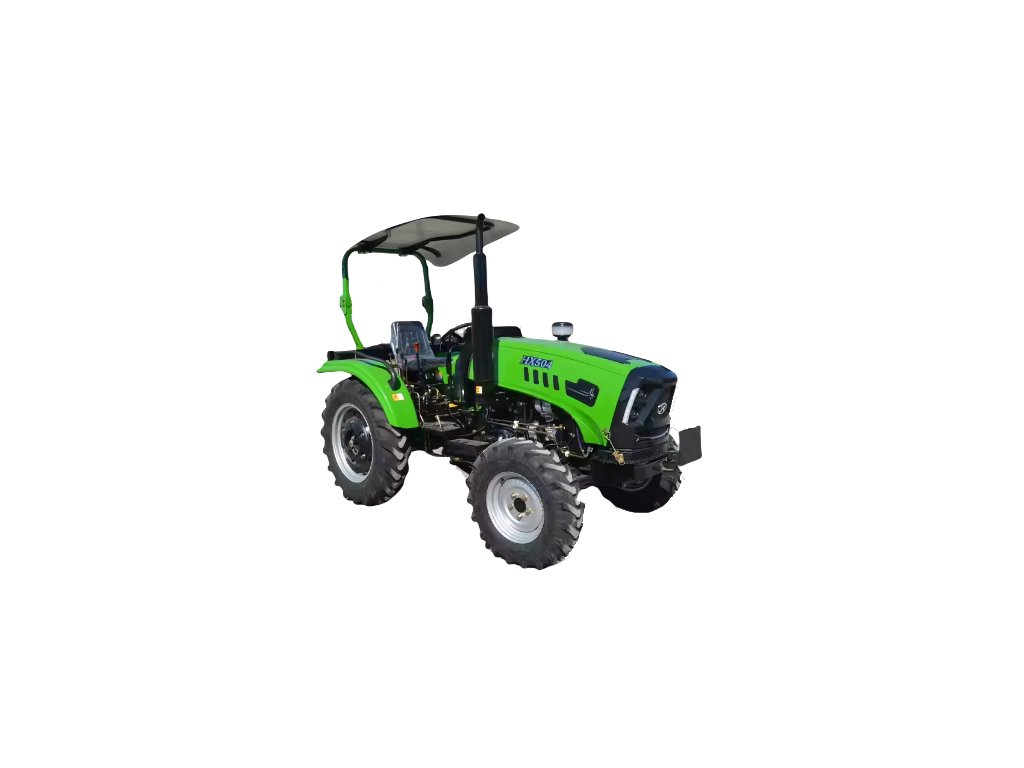

Tauros HX504 4×4
| Category: | Small Tractors for Winemakers/Hobby Farmers |
|---|---|
| Výkon: | 36,76 KW (50 HP) |
| Přední náhon (4WD): | Ano |
| Motor: | FAWDE (DEUTZ Diesel motor) |
| Počet válců: | 4 |
| Palivo: | diesel |
| Kapacita nádrže: | 50 l |
| Jmenovité otáčky motoru: | 2400 otáček/min |
| Jmenovitý výkon vývodové hřídele: | 31,25 KW |
| Vývodová hřídel (PTO): | 540/720 otáček/min. (6 zubů) |
| Převodovka: | dvoustupňová mechanická |
| Počet rychlostí: | 8F+8R |
| Systém brzd: | kotoučové brzdy |
| Rozsah rychlostí: | vpřed 5-33 km/h, na reverz 5-21 km/h |
| Pneumatiky (přední/zadní): | 8.3-20/12.4-28 |
| Tříbodový závěs: | dvojitý hydraulický olejový válec |
| Váha stroje (kg): | 1800 |
| Rozměry (mm): | 3200x1600x1950 |
| Hydraulický průtok: | 33,6 l/min |
| Kapacita zdvihu: | 860 kg |
| Vývody hydrauliky: | 2 skupiny (po čtyřech) |
| Uzávěrka diferenciálu: | Ano |
| Vybavení kabiny: | ventilátor + topení + pružinové sedadlo |
| Emisní třída: | Euro 4 |
| Účel: | Farmaření, vinohradnictví, komunální služby |
| Typ traktoru: | malotraktor |
Tauros HX504 4×4 – Power That Redefines the Limits of Hobby Tractors
The tractor features a heated cabin, air brakes, and two sets of hydraulic outlets as standard equipment.
With an attractive design similar to the German Deutz tractor, all-wheel drive with the option to disengage the front drive, strong and powerful hydraulics, and a compact appearance, it is an excellent choice for anyone looking for a helper for mowing and mulching grass, transporting wood or other loads, plowing, cultivating soil, wood handling, drilling, and pressing.
WHY HX504?
| SIMPLICITY The compact dimensions of the tractor, simple controls, and user-friendly design offer the required performance for moderately demanding applications.
|
ECONOMY The 50 HP diesel engine offers long-term operational durability with low fuel consumption and minimal maintenance requirements.
|
| SAFETY The base model of the small tractor comes with a heated, comfortable cabin, safety frame, compact chassis, and air brakes.
|

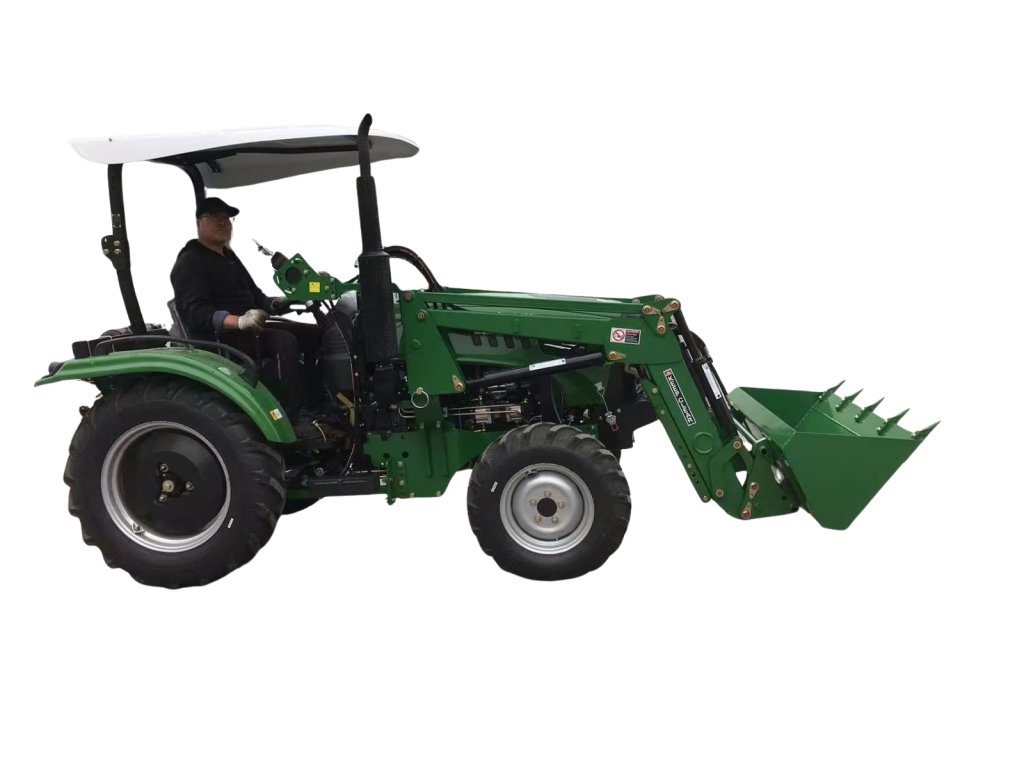

VERSATILITY The rear power take-off shaft allows for the attachment of a range of accessories for mowing, mulching, soil cultivation, or transporting medium-heavy loads. A front loader and rear backhoe can also be added.
|
TECHNICAL SPECIFICATIONS
| Model | Tauros HX504 | |
|---|---|---|
| Performance | Power | 36.76 kW (50 HP) |
| Front Drive (4WD) | Yes | |
| Engine | FAWDE (DEUTZ Diesel Engine) | |
| Number of Cylinders | 4 | |
| Fuel | Diesel | |
| Fuel Tank Capacity | 50 L | |
| Engine Rated Speed | 2400 rpm | |
| Rated PTO Power | 31.25 kW | |
| PTO Shaft Speed | 540/720 rpm | |
| Transmission | Two-stage mechanical | |
| Number of Gears | 8F + 8R | |
| Other Parameters | Braking System | Disc brakes |
| Speed Range | Forward 5-33 km/h, Reverse 5-21 km/h | |
| Tires (Front/Rear) | 8.3-20 / 12.4-28 | |
| Three-Point Hitch | Double hydraulic oil cylinder | |
| Machine Weight (kg) | 1800 | |
| Dimensions (mm) | 3200 x 1600 x 2500 | |
| Hydraulic Flow | 33.6 L/min | |
| Lifting Capacity | 860 kg | |
| Hydraulic Outlets | 2 groups (four outlets each) | |
| Differential Lock | Yes | |
| Standards | Cab Equipment | Fan + heater + sprung seat |
| Emissions Class | Euro 4 | |
| Purpose | Farming, viticulture, municipal services | |
