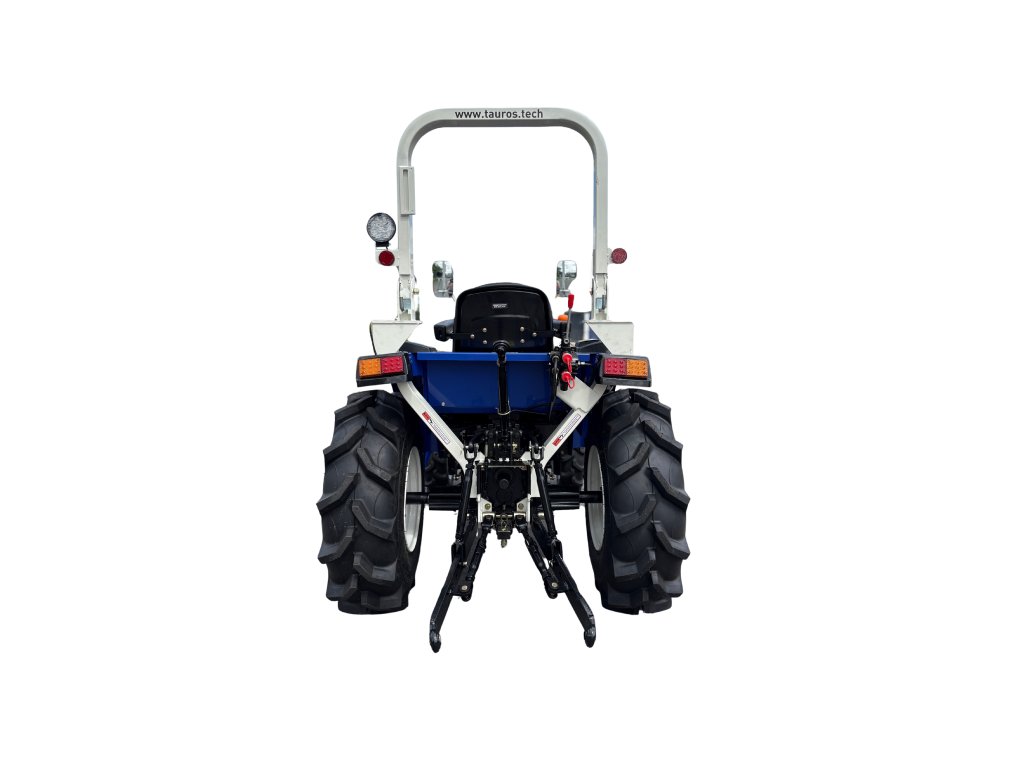

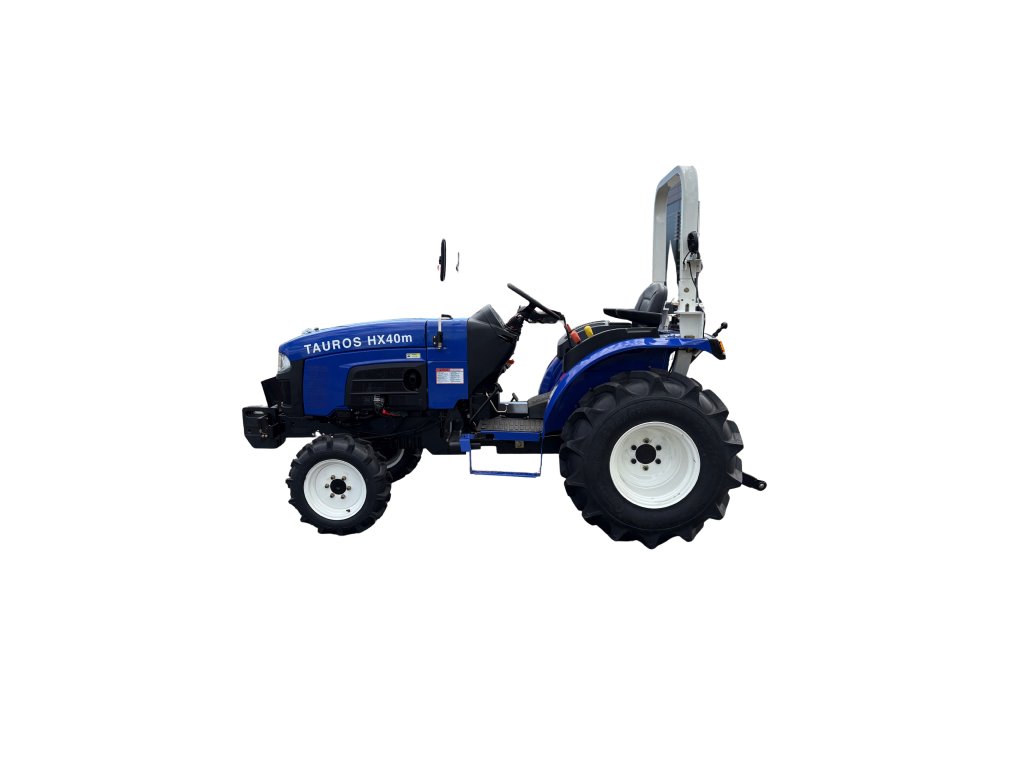

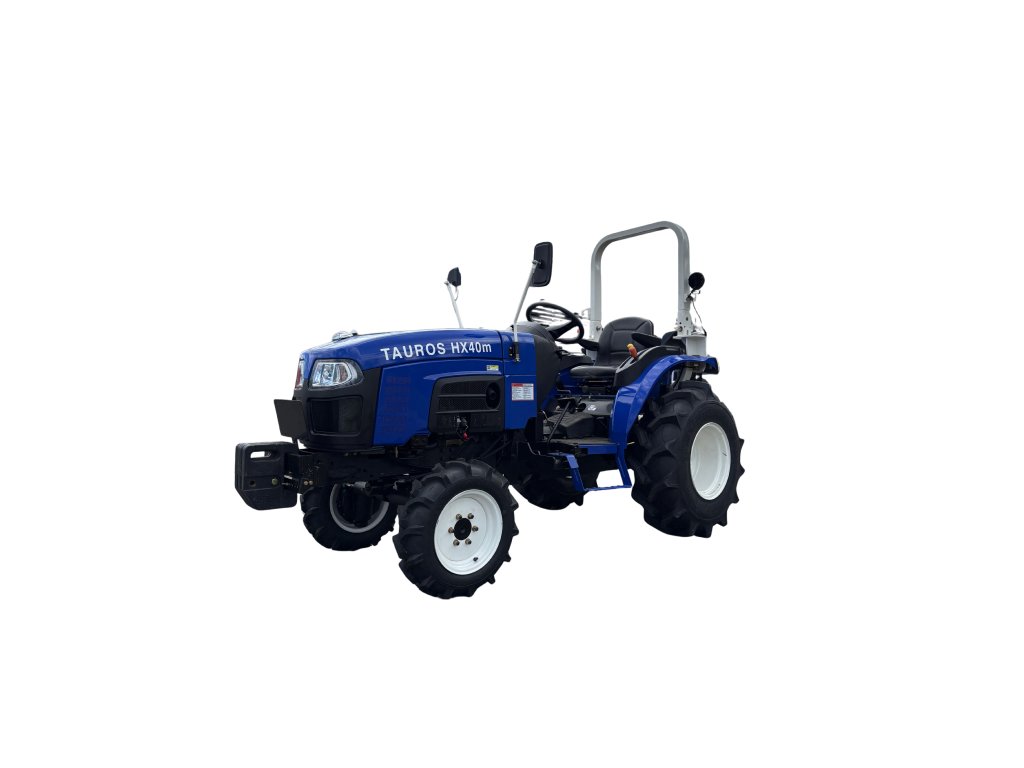

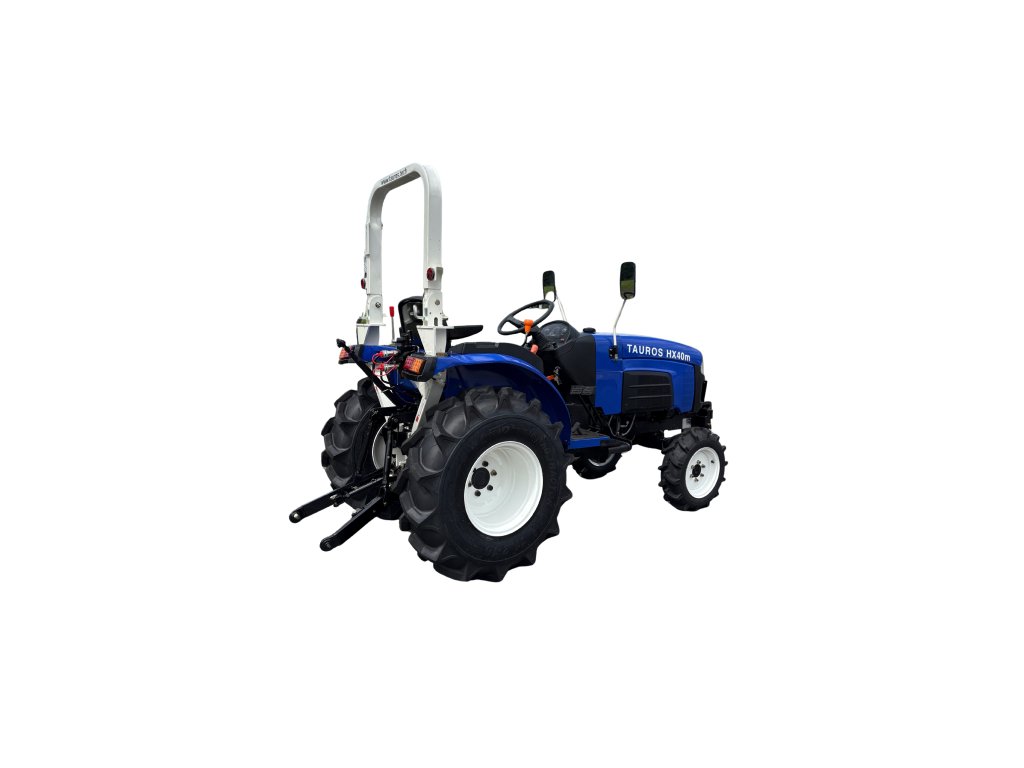

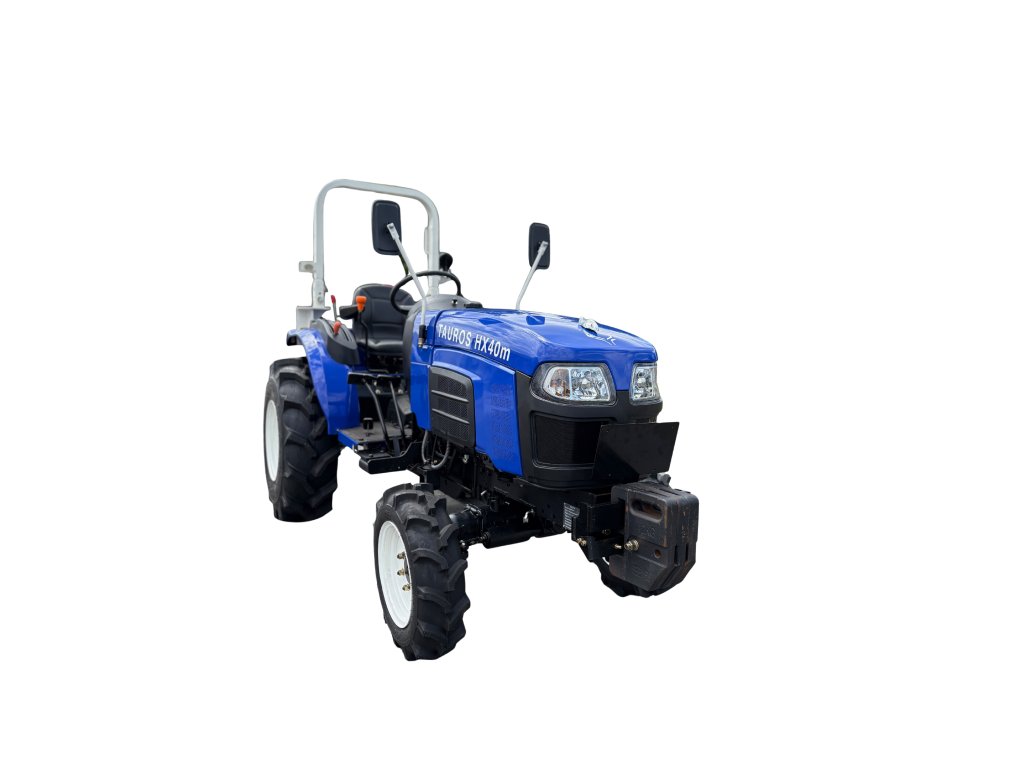

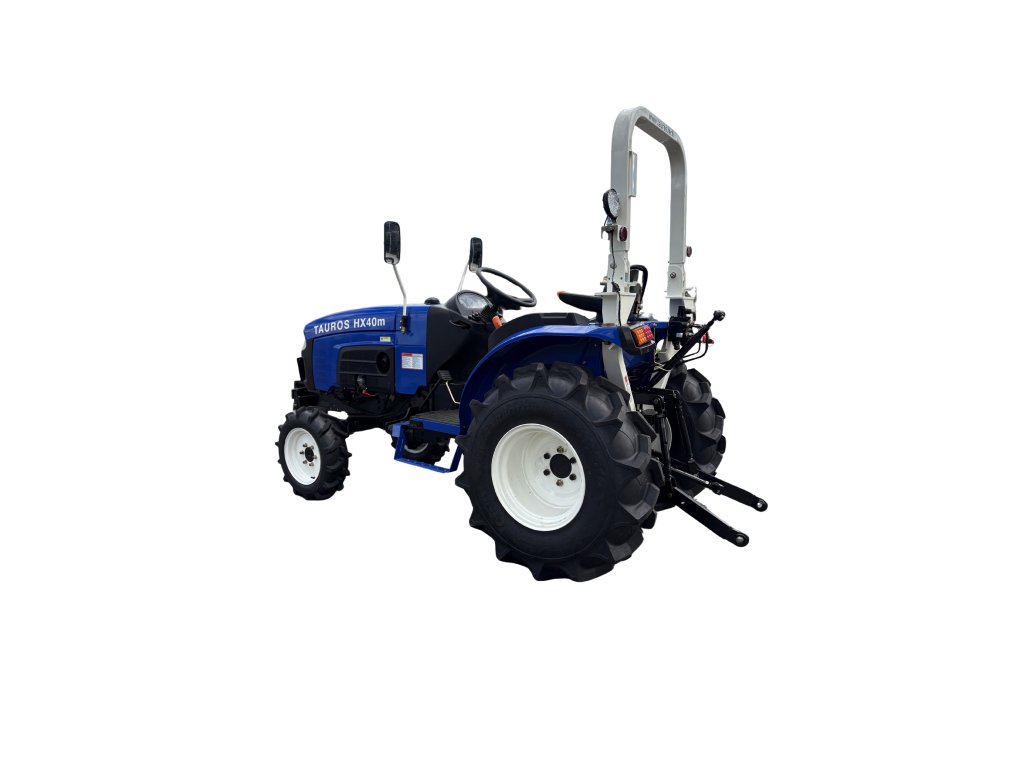

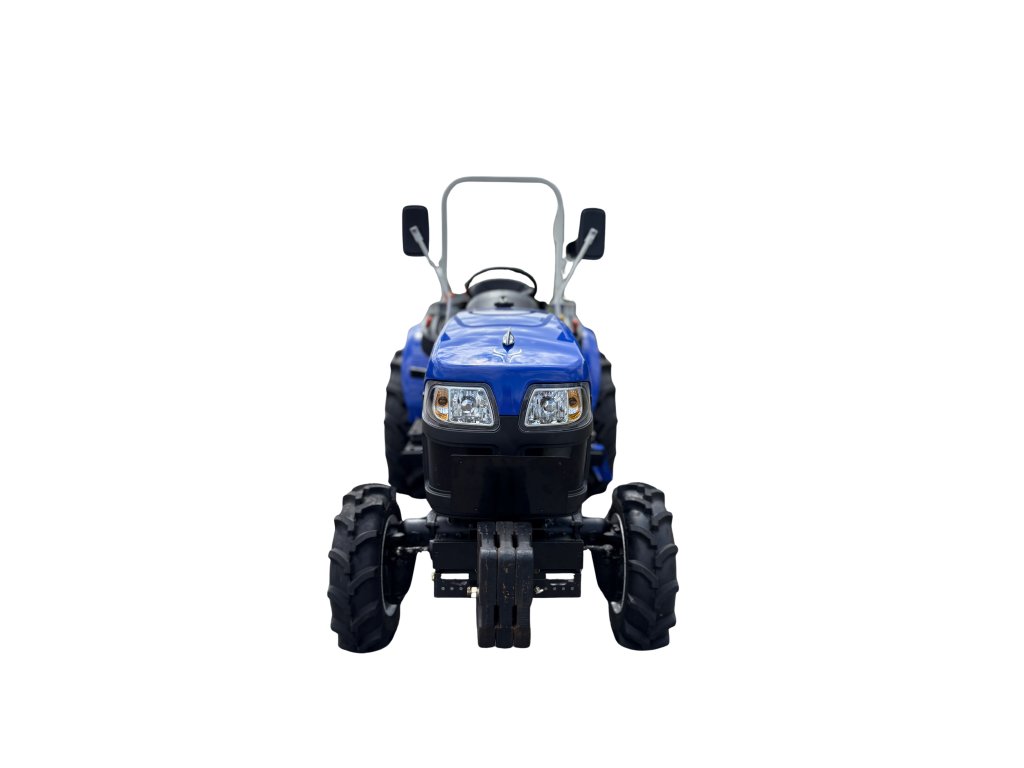

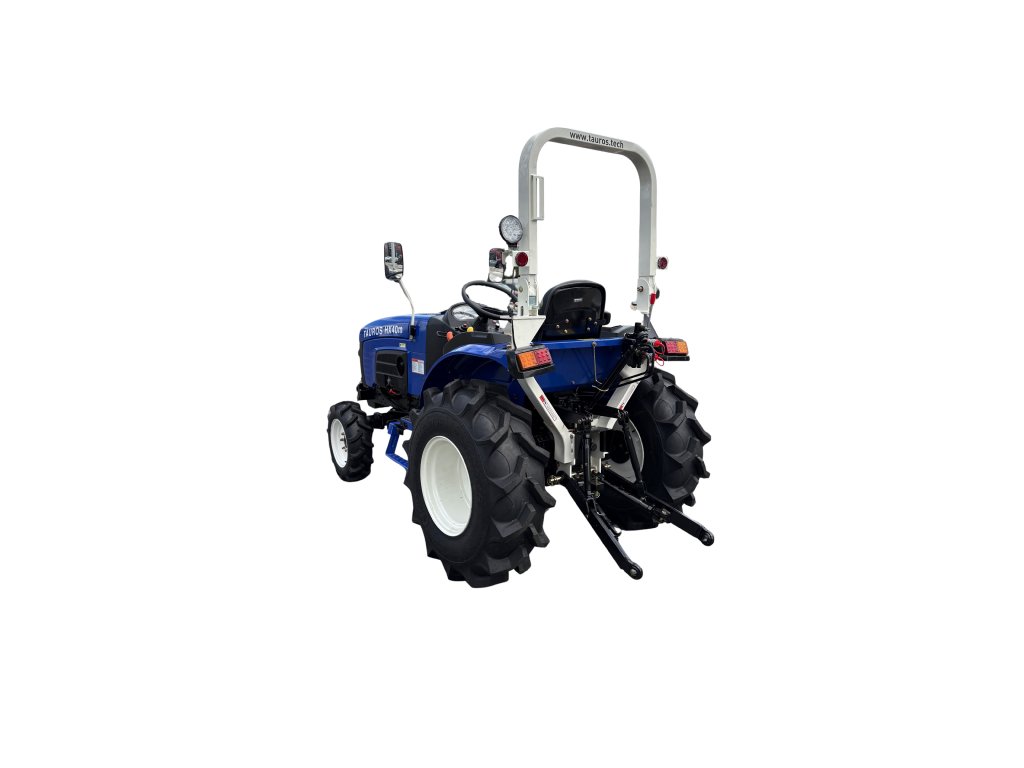

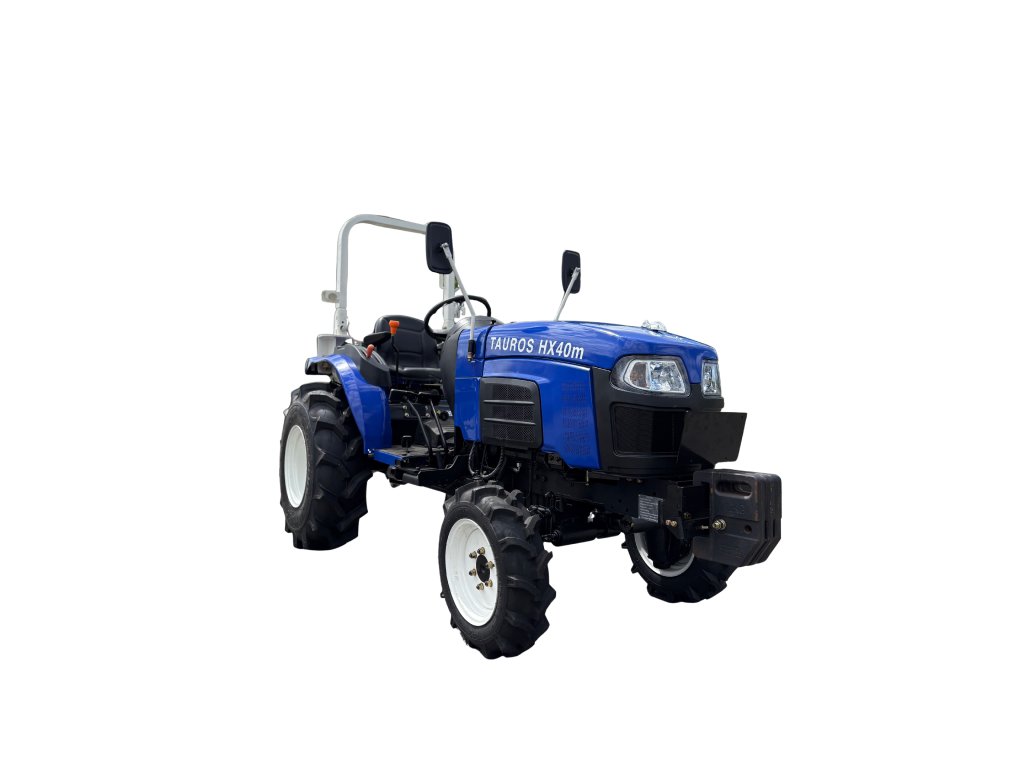

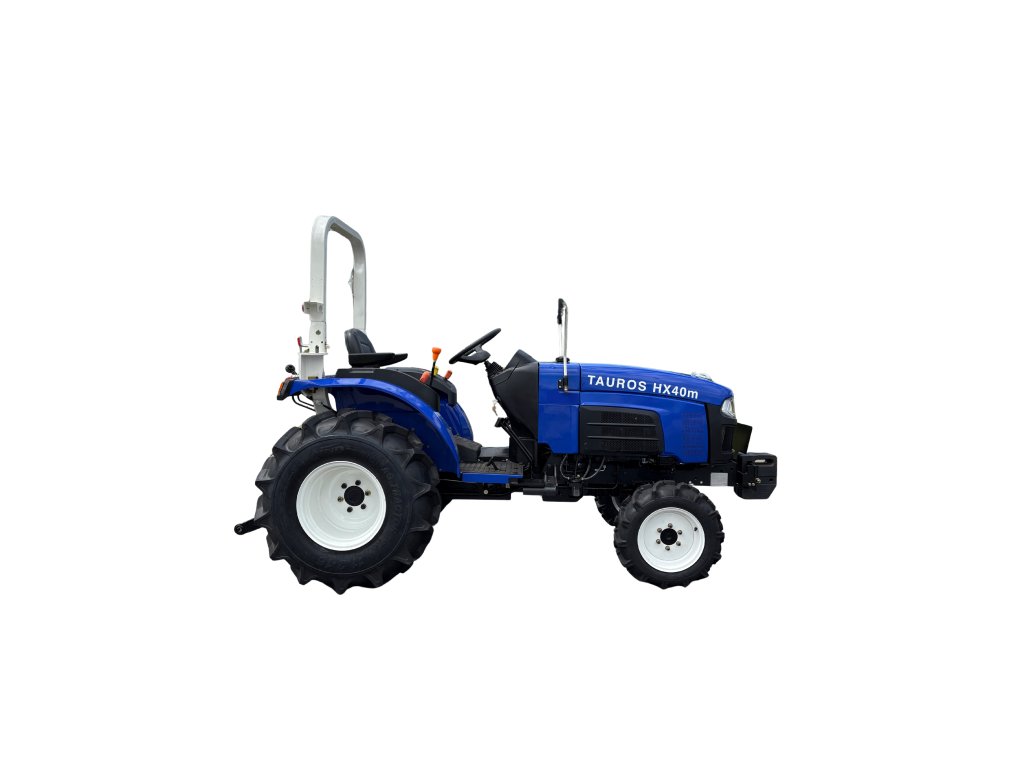

Tauros HX40 4×4
The Tauros HX40 4x4 is a mid-range compact tractor with excellent equipment and two basic versions. This mini tractor offers the best of the compact series. The Tauros HX40 4x4 is sized and powered to meet the needs of small farmers and winegrowers, while also being a suitable assistant in the municipal sector.
| Category: | Small Tractors for Winemakers/Hobby Farmers |
|---|---|
| Výkon: | 19,3 KW (26,1 koní) |
| Obsah motoru: | 1 123 ccm |
| Přední náhon: | Ano |
| Typ motoru: | Changchai 3M78 |
| Počet válců: | 3 |
| Palivo: | diesel |
| Kapacita nádrže: | 23 l |
| Jmenovité otáčky motoru: | 2600 otáček/min |
| Jmenovitý výkon (PTO): | 14,8 KW (20 koní) |
| Rychlost hřídele: | 540/980 otáček/min. |
| Převodovka: | mechanická |
| Počet rychlostí: | 9F a 3R |
| Systém brzd: | kotoučové brzdy s mokrým bržděním |
| Rozsah rychlostí: | reverz: max. 10km/h |
| Pneumatiky (přední/zadní): | 5-12/8.3-20 |
| Tříbodový závěs: | IS kategorie 1, 1N |
| Váha stroje (kg): | 625 |
| Rozměry (mm): | 2410x1105/1015x1970 |
| Hydraulický průtok: | 26,6 l/min. |
| Kapacita zdvihu: | 750 kg |
| Vývody hydrauliky: | 2 vývody |
| Uzávěrka diferenciálu: | Ano |
| Emisní třída: | Euro 5 |
| Účel: | Zahrádkářství, vinohradnictví, komunální služby |
| Typ traktoru: | malotraktor |
Tauros HX40 4x4 – A unique farm tractor for the most demanding users
Maneuverable, powerful and yet compact – that’s exactly what the Tauros HX40 is. Ideal for anyone looking for a reliable farm tractor for agriculture, municipal services, viticulture or forestry. It is designed to handle even the most demanding tasks – whether it’s pulling, mowing, mulching, cultivating the soil or working with an agricultural trailer.
The heart of the tractor is a powerful 40 hp diesel engine, which, combined with all-wheel drive and powerful hydraulics, provides enough power and flexibility for everyday operation. Thanks to two transmission options, you can choose the configuration exactly according to your needs – whether you prefer precise control over performance or comfort and ease of operation.
Two basic variants
This farm tractos has two variants:
Tauros HX40m – with manual transmission
- 9 forward and 3 reverse speeds
- Precise power distribution
- Ideal for plowing, pulling and working on uneven terrain
Tauros HX40a – with hydrostatic transmission
- Smooth speed control without the need to shift
- Comfortable work when changing direction frequently (e.g. with a loader)
- Suitable even for less experienced users
WHY HX40?
| FLEXIBILITY IN CONTROL Configure the machine with a 9+3 manual transmission (HX40m) for maximum control, or a comfortable hydrostatic transmission (HX40a) for smooth driving without the need to shift gears. |
COMPACT AND STABLE Thanks to its compact dimensions, low center of gravity and 4×4 drive, the HX40 is stable even on sloping or uneven surfaces – ideal for vineyards, orchards and forest roads.
|
| UNCOMPROMISING PERFORMANCE The powerful 40 hp three-cylinder diesel engine handles heavy-duty work with implements and cargo transport with low fuel consumption and reliability in any terrain.
|
VERSATILITY A unique solution combining the power of larger mini tractors, the dimensions and maneuverability of smaller mini tractors, and compact equipment without hidden extras.
|
TECHNICAL SPECIFICATIONS
| Model | Tauros HX40 | |
|---|---|---|
| Performance | Power | 29,6 kW/40 HP |
| 4WD | Yes | |
| Engine Type | XY477 | |
| Number of Cylinders | 3 | |
| Fuel | Diesel | |
| Engine Rated Speed | 3600 rpm | |
| Rated PTO Power | 25 kW/34 HP | |
| PTO Speed | 750 rpm | |
| Transmission | Mechanical/HST | |
| Number of Gears | 9F + 3R | |
| Other Parameters | Braking System | Wet disc brakes |
| Speed Range | 1.70–20.42 km/h | |
| Tires (Front/Rear) | 7-12/12.4-16 | |
| Three-Point Hitch | CAT 1 | |
| Machine Weight (kg) | 990 | |
| Dimensions (mm) | 2920×1337×2010 | |
| Working capacity (m2) | More than 15000 | |
| Lifting Capacity (kg) | 700 | |
| Turning radius (mm) | 2500 | |
| Hydraulic Outlets | Yes | |
| Differential Lock | Yes | |
| Standards | Emissions Class | Euro 5 |
| COC | yes (only HX40a) | |
| Purpose | Municipal services, viticulture, farming | |
