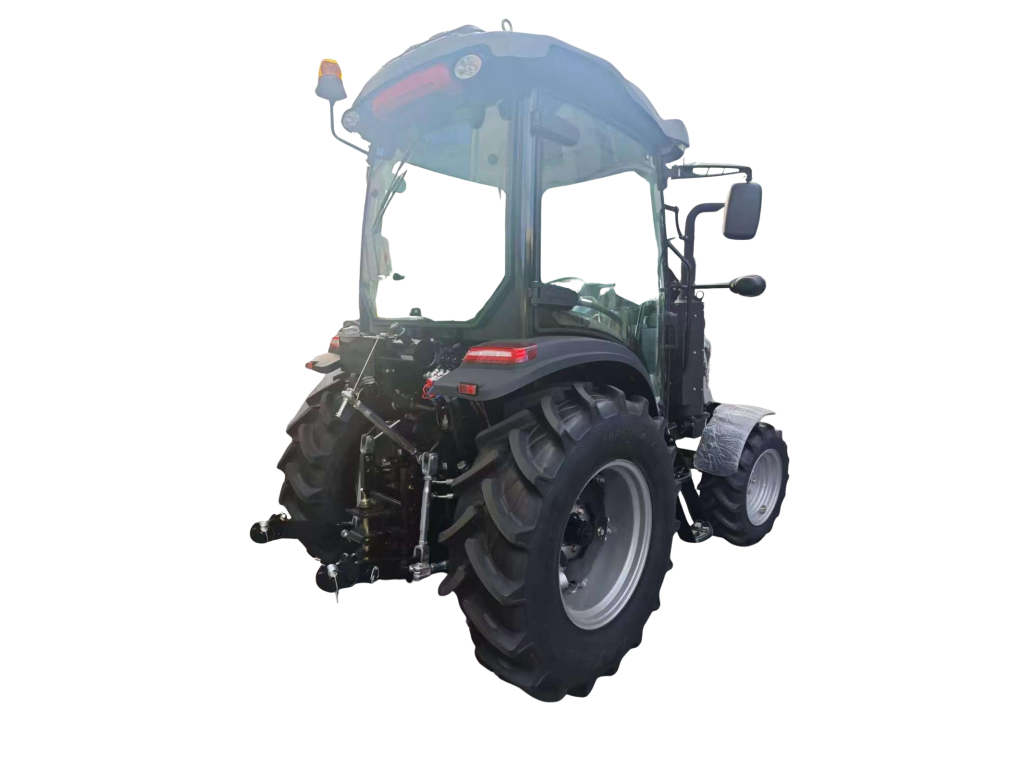

Tauros TE404c 4x4 – Comfort and Efficiency with Practical Power
Tauros TE404c 4x4 is an ideal solution for small farms, municipalities, and utility service providers looking for a versatile compact tractor with modern equipment, high operator comfort, and low operating costs. Powered by an efficient four-cylinder 40 HP diesel engine, it offers an attractive balance between the TE254 (25 HP) and the TE504c (50 HP), making it the perfect choice for customers seeking the optimal combination of performance, comfort, and affordability.
The modern cab with air conditioning, 4View camera system, and excellent all-round visibility ensures comfortable operation throughout the year. Its robust construction, 8+8 shuttle transmission, and professional hydraulic system with floating function enable efficient work with a wide range of agricultural and municipal implements.
Standard Equipment – TAUROS TE404c (STANDARD)
-
8F + 8R transmission – synchronised with shuttle
-
Dual-stage clutch – for smooth take-off and PTO operation
-
Radial tyres – 280/70R18 front + 380/85R24 rear
-

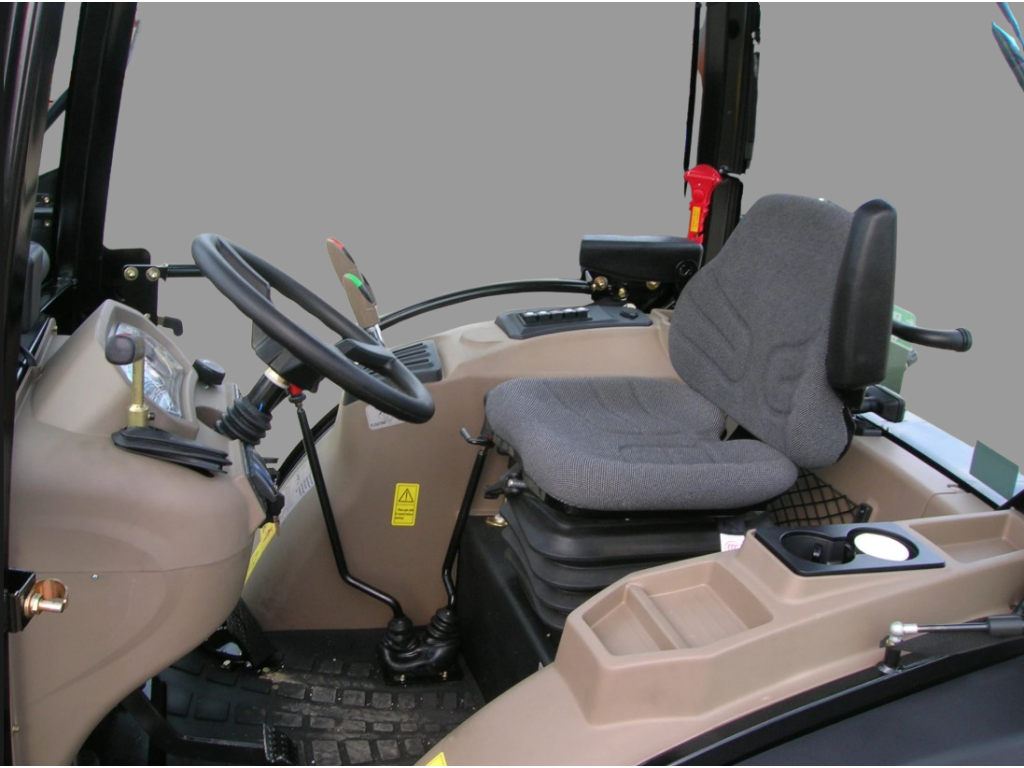

Seat with armrests – suspended and comfortable driver’s seat
-

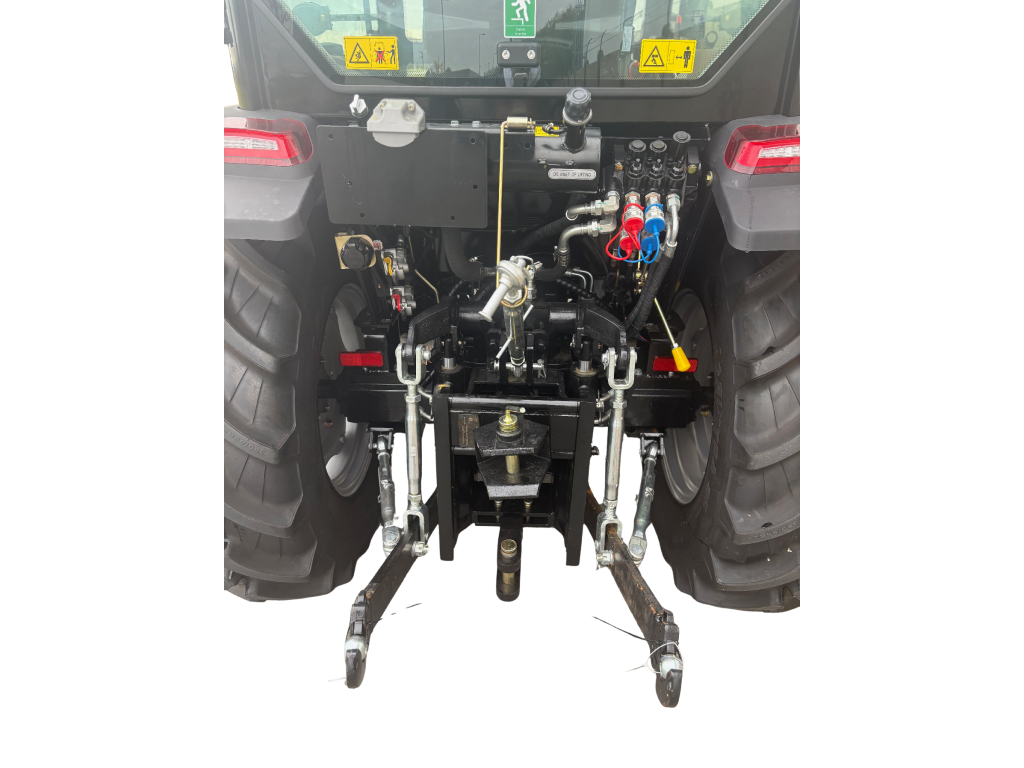

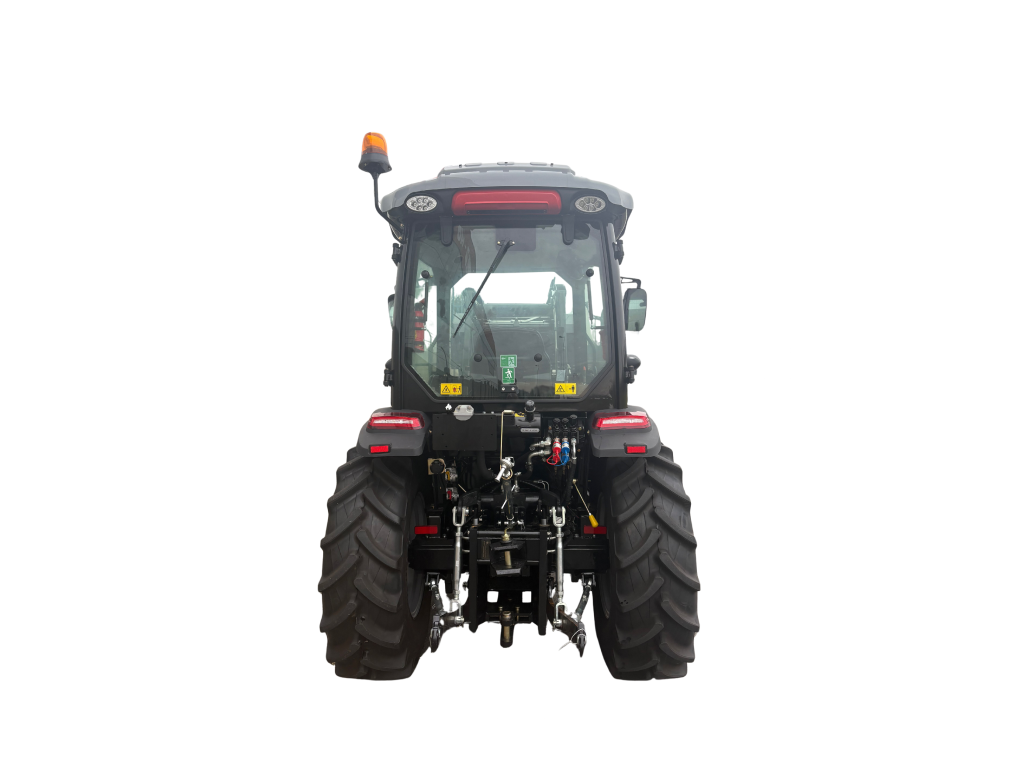

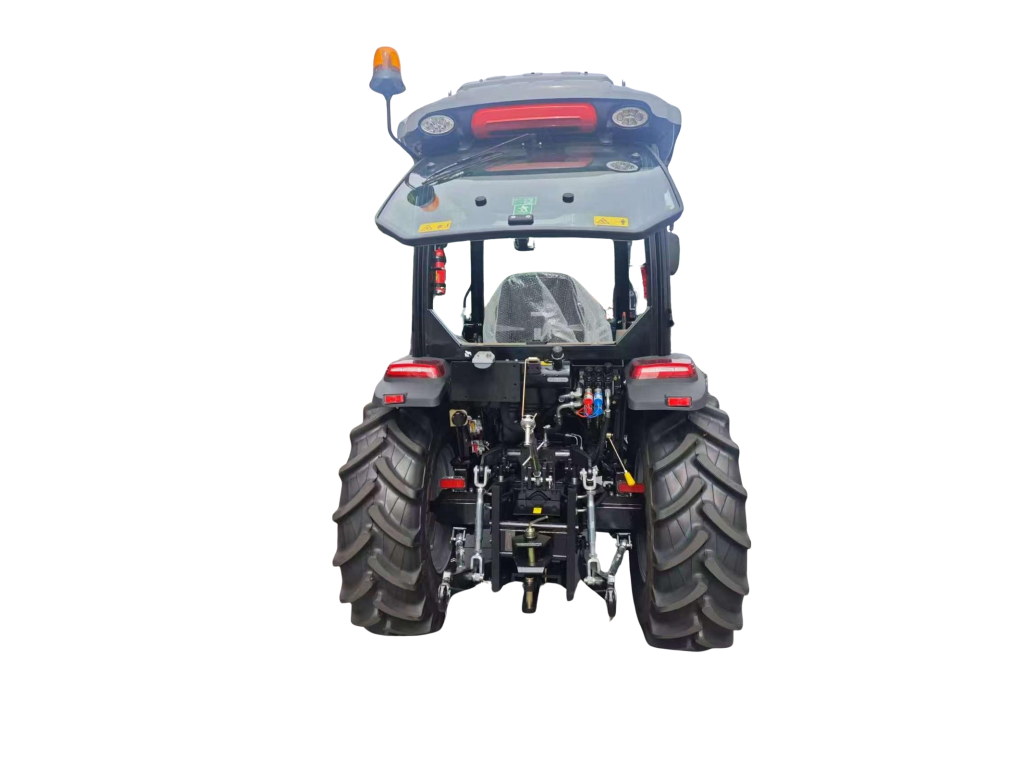

Rear hitch – towing device with swivelling drawbar
-
2 pairs of hydraulic outlets – European quick couplings
-
Dual lift hydraulic cylinders – even force distribution and higher lifting capacity
-
Dual-circuit air brake system – including quick coupling and tyre inflation system
-
Front mudguards – protection against mud and damage
-
Weights – front and rear wheel weights
-

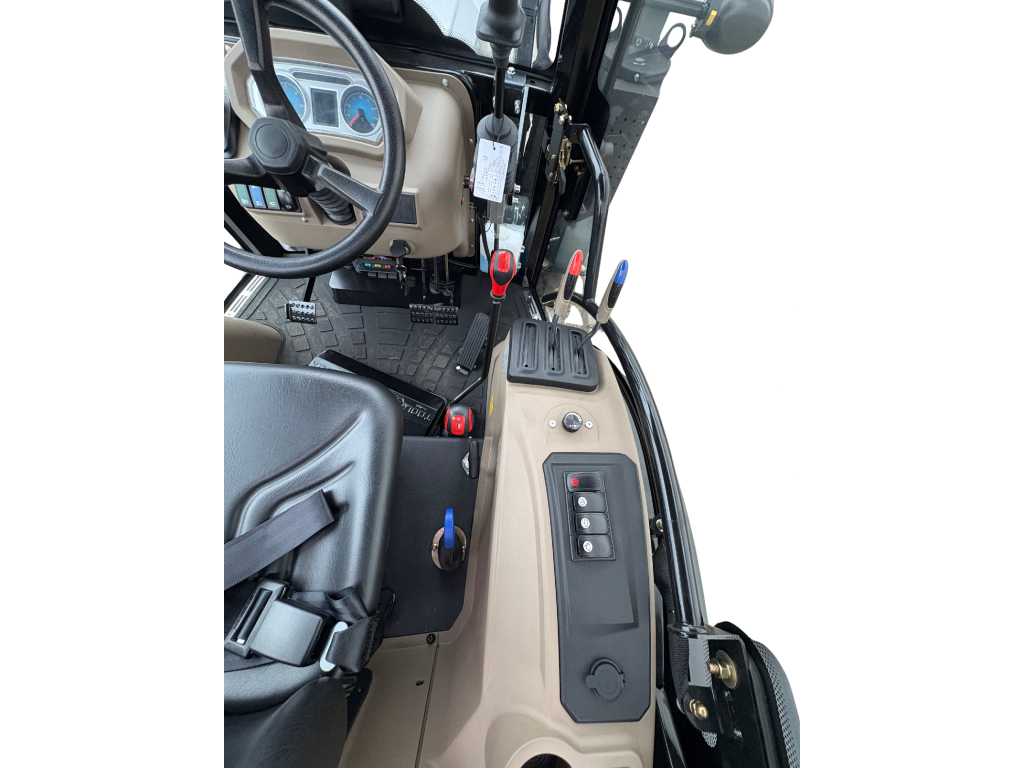

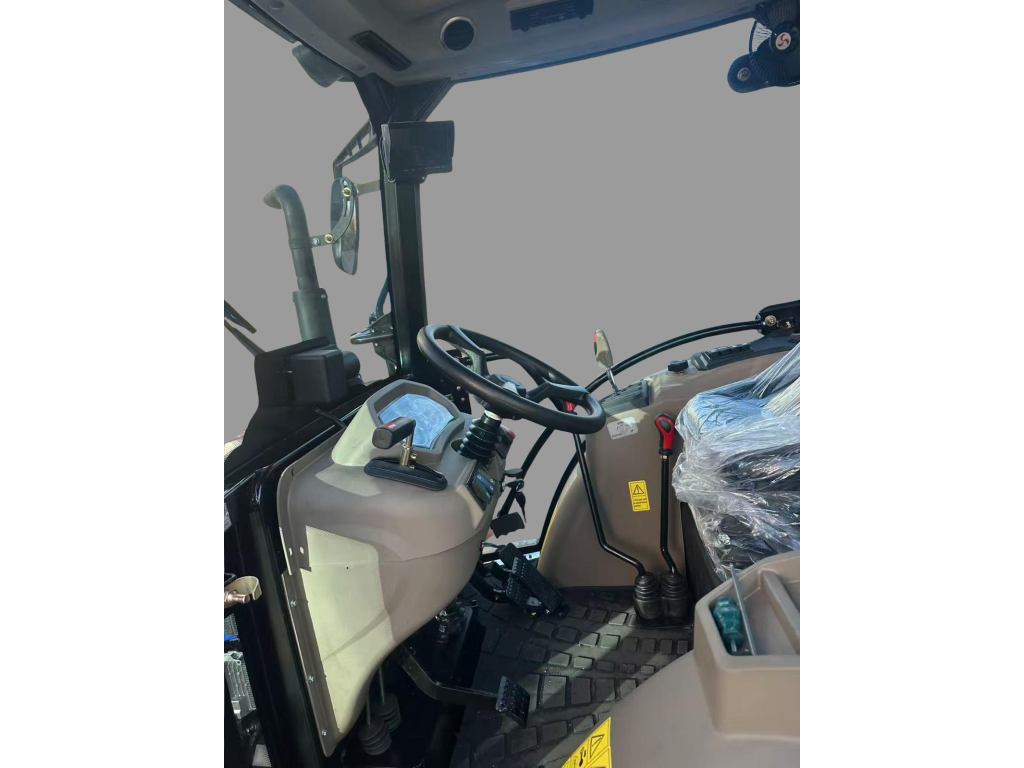

Comfort cab – equipped with air conditioning and other modern features
-
4-view camera system – in-cab camera providing front, rear and side views
- Floating position - Three-way floating hydraulic function

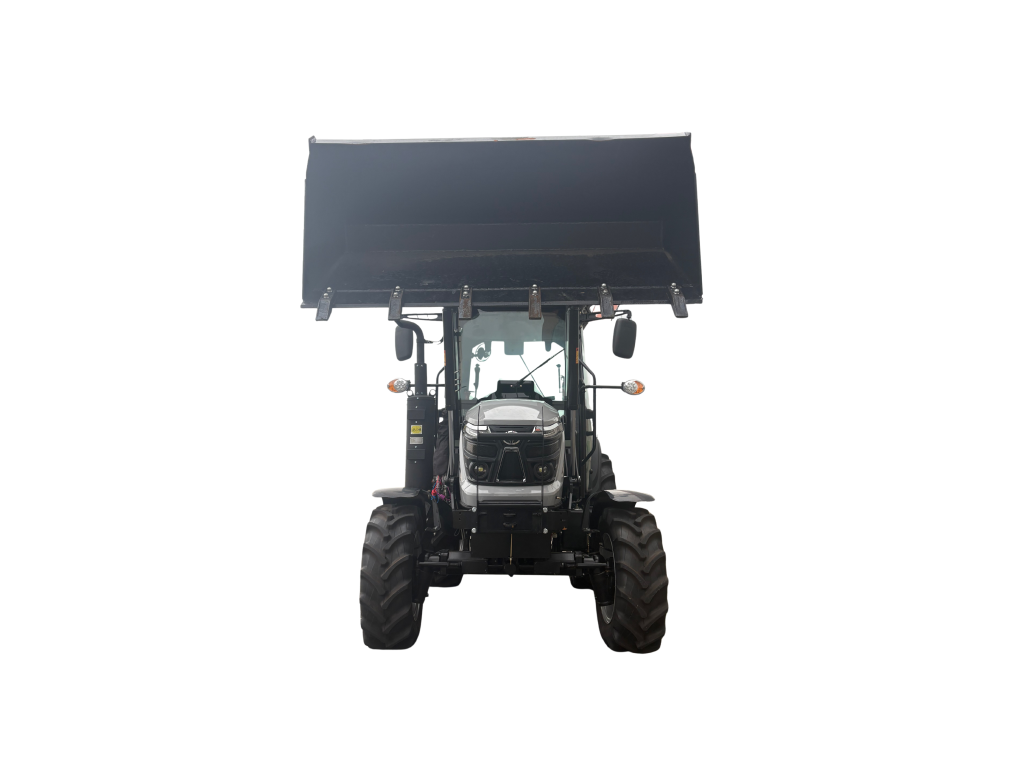

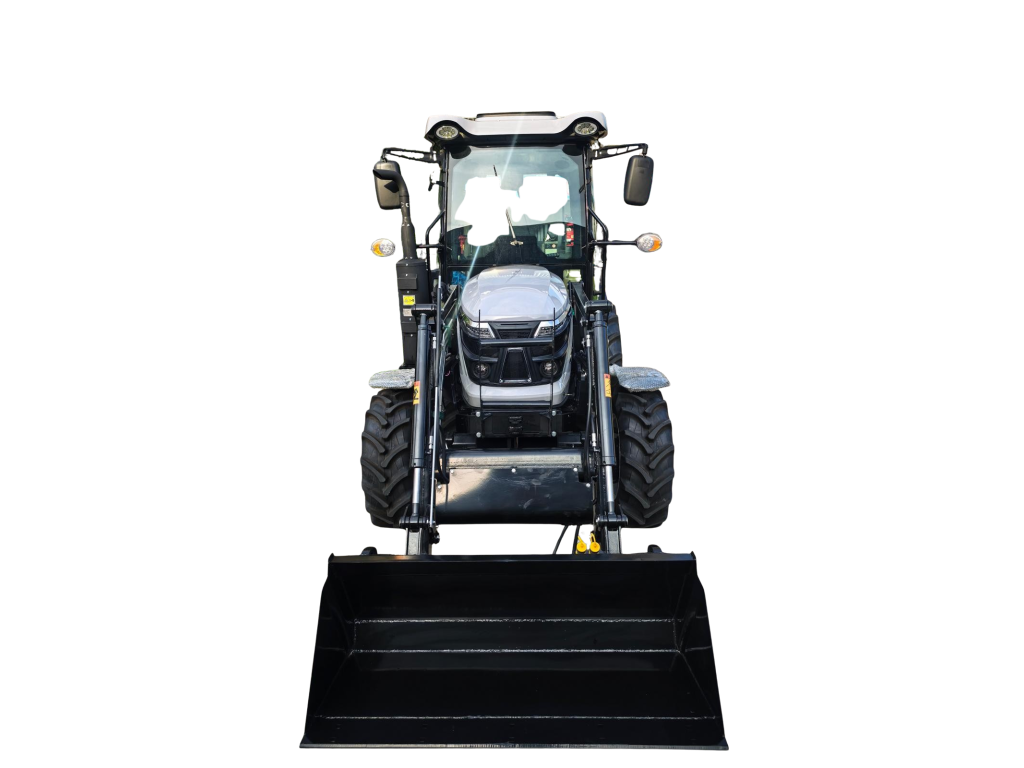

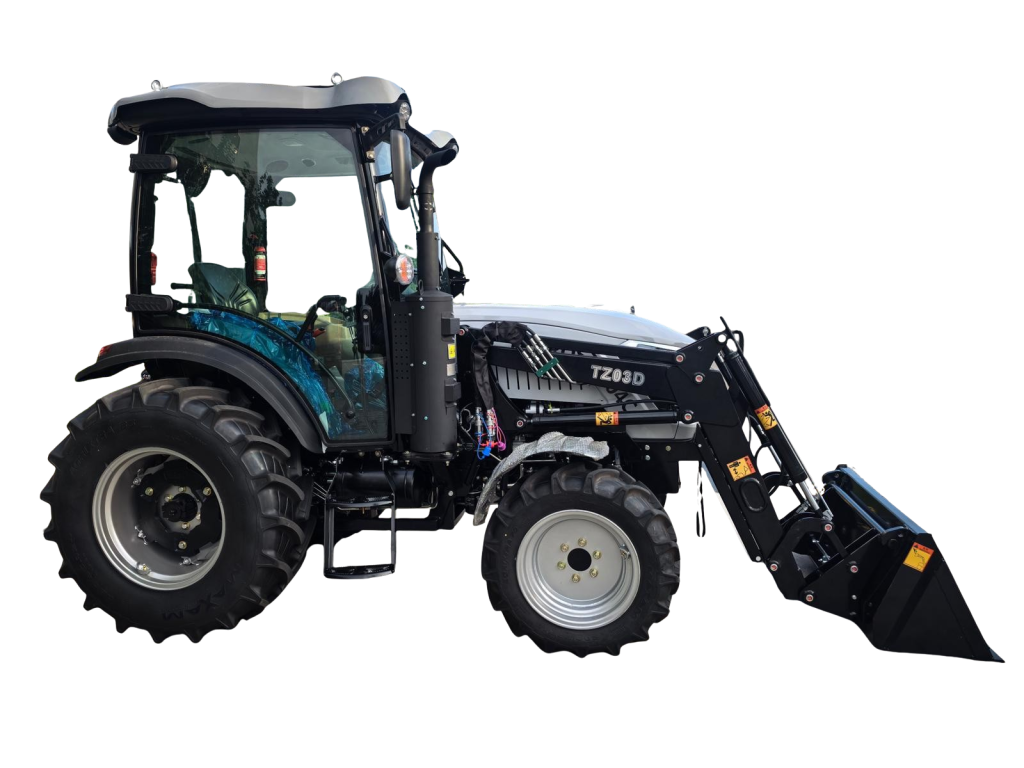

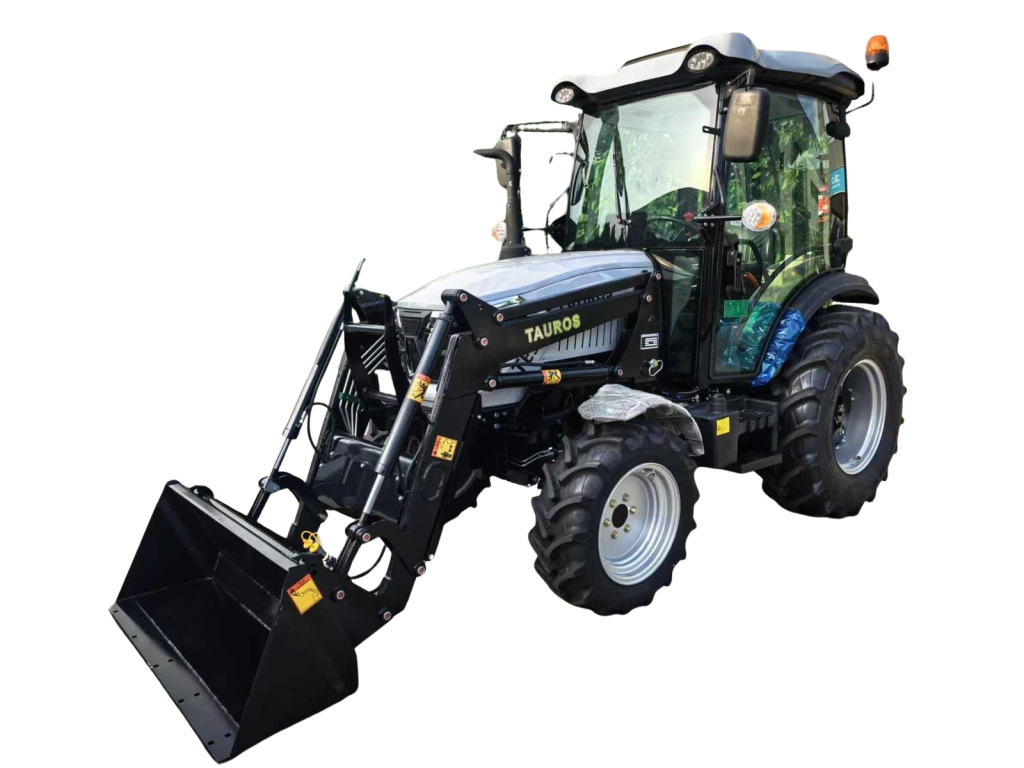

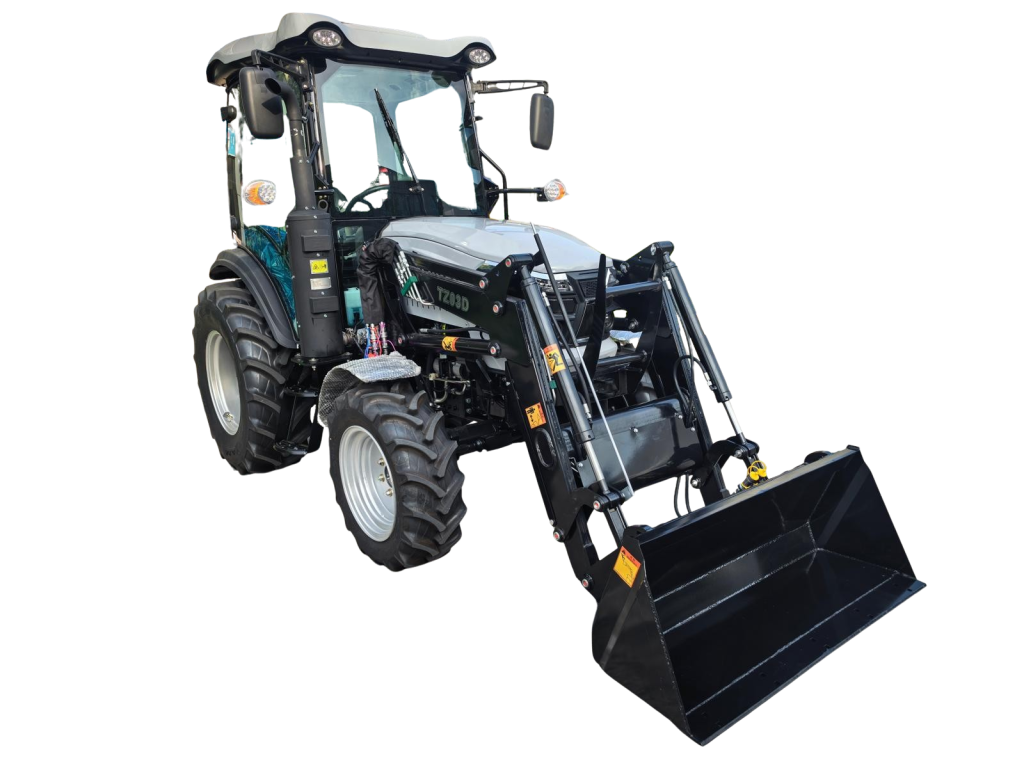

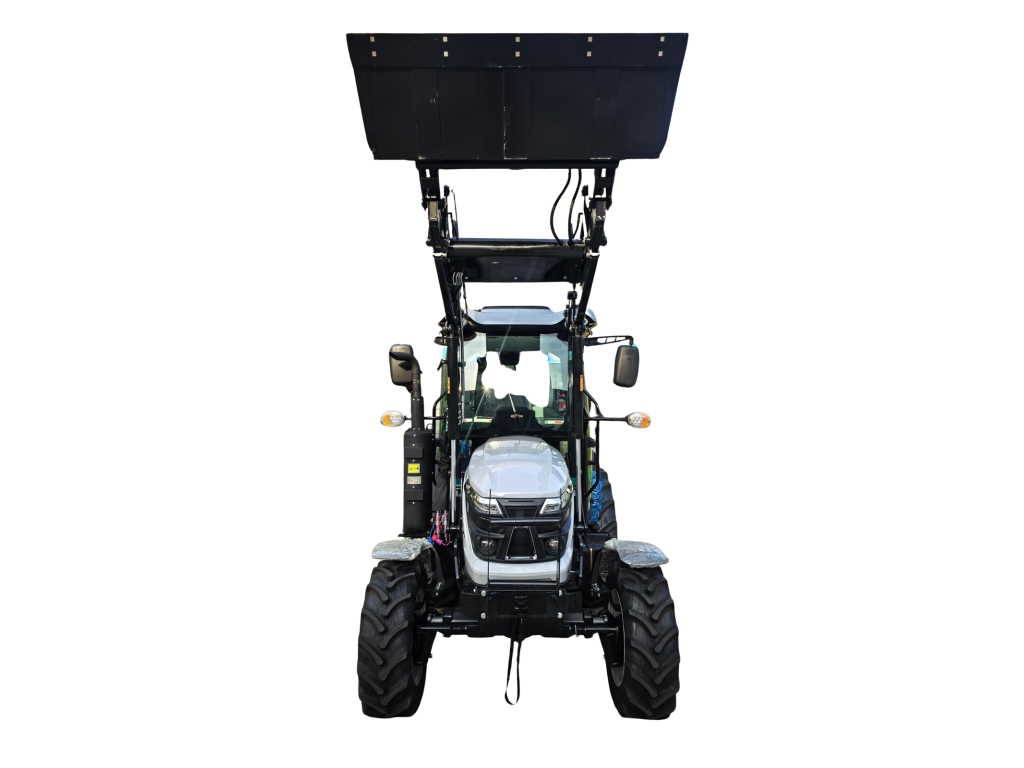

Front Loader TZ04D
The Tauros TZ04D front loader is a powerful and durable attachment designed for tractors with 40–75 HP. Its robust construction and strong lifting performance make it ideal for handling bulk materials, manure, soil, pallets, and feed. It is widely used in agriculture, construction, and municipal services. The loader offers a maximum lift capacity of 550 kg and a rated lift capacity of 400 kg. A key advantage is that the TZ04D front loader is homologated as a separate technical unit (mounted work machine), allowing legal road use in accordance with applicable regulations. The technical parameters are listed below:
| Recommended tractor power |
40–75 HP |
| Max. lifting height (H) |
2820 mm |
| Dumping height (A) |
2140 mm |
| Overall lifting height (L) |
2670 mm |
| Dumping distance (W) |
600 mm |
| Ground clearance (B) |
1360 mm |
| Max. rollback angle |
46° |
| Dump angle |
49° |
| Crowd angle |
135° |
| Digging depth |
100 mm |
| Bucket width |
1500 mm |
| Bucket capacity |
0.24 m³ |
| Rated lift capacity |
400 kg |
| Maximum lift capacity |
550 kg |
| Loader homologation |
Yes |
WHY TAUROS TE404c?
POWER AND EFFICIENCY
The modern four-cylinder LAIDONG diesel engine delivers 40 HP, providing ample power for everyday agricultural and municipal tasks while maintaining low fuel consumption and meeting the latest Euro 5 emission standards.
|
COMFORT AND SPACIOUSNESS
The next-generation cab with air conditioning, 4View camera system, and ergonomic operator station ensures comfortable working conditions throughout the year, regardless of weather conditions. |
FUNCTIONALITY AND PREMIUM EQUIPMENT
Dual rear lift cylinders, two hydraulic circuits, air trailer brakes, swinging drawbar, and three-point linkage are all included as standard equipment. The three-way floating hydraulic function makes the tractor particularly effective when operating a front loader and demanding implements. |
VERSATILITY
Four-wheel drive, 8+8 shuttle transmission, air trailer brakes, and compatibility with a wide range of implements make the TE404c a truly versatile tractor for farms, municipalities, and utility service providers. |
Applications of the Tauros TE404C
🧑🌾 Vineyards and Orchards
Its compact dimensions, excellent maneuverability, and comfortable cab make the TE404c ideal for year-round work in vineyards, orchards, and fruit-growing operations.
🏛️ Municipalities and Utility Services
The TE404c handles road maintenance, grass mowing, winter service operations, material transport, and other municipal tasks thanks to its compatibility with a wide range of attachments
🧱 Livestock Farms and Small Agricultural Holdings
Perfect for material handling, feed transportation, daily farm maintenance, front loader work, and general field operations on small and medium-sized farms.
🌲 For forestry and hobby farmers
An excellent solution for customers seeking professional-grade equipment with a comfortable cab and sufficient power reserve for regular work around larger properties, homesteads, and private farms.
TECHNICAL SPECIFICATIONS
| Model |
TAUROS TE404C |
| Performance |
Power |
29,4 kW (40 HP) |
|
|
2836 ccm |
| Front Drive (4WD) |
Yes |
| Engine |
Laidong |
| Number of Cylinders |
4 |
| Fuel |
Diesel |
| Fuel Tank Capacity |
50L |
| Engine Rated Speed |
2400 rpm |
| Rated PTO Power |
kW |
| PTO Shaft Speed |
540/1000 rpm |
| Transmission |
Synchronized |
| Number of Gears |
8F+8R |
| Other Parameters |
Braking System |
Wet disc brakes |
| Speed Range |
2,46 - 34,52 km/h |
| Tires (Front/Rear) |
P: 280/70R18, Z: 380/85R24 |
| Machine Weight (kg) |
2100 |
| Dimensions (mm) |
3550*1730*2710 |
| Lifting Capacity |
850 Kgs. |
| Hydraulic Outlets |
2 pairs |
| Differential Lock |
Yes |
| Standards |
Cabin Equipment |
|
| Additional Equipment |
Front and rear weights, mudguards, swivelling hitch, radio |
| Certification |
E-Mark; COC |
| Emissions Class |
Euro 5 |
| Purpose |
Farming, Forestry, Municipal Services |
