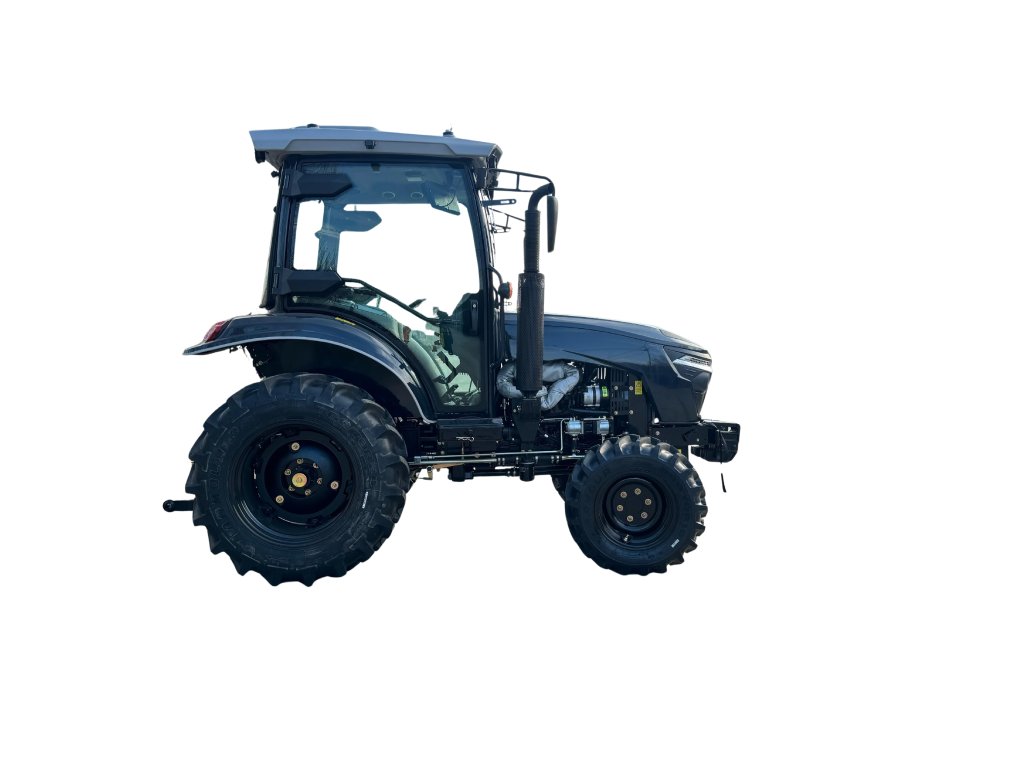

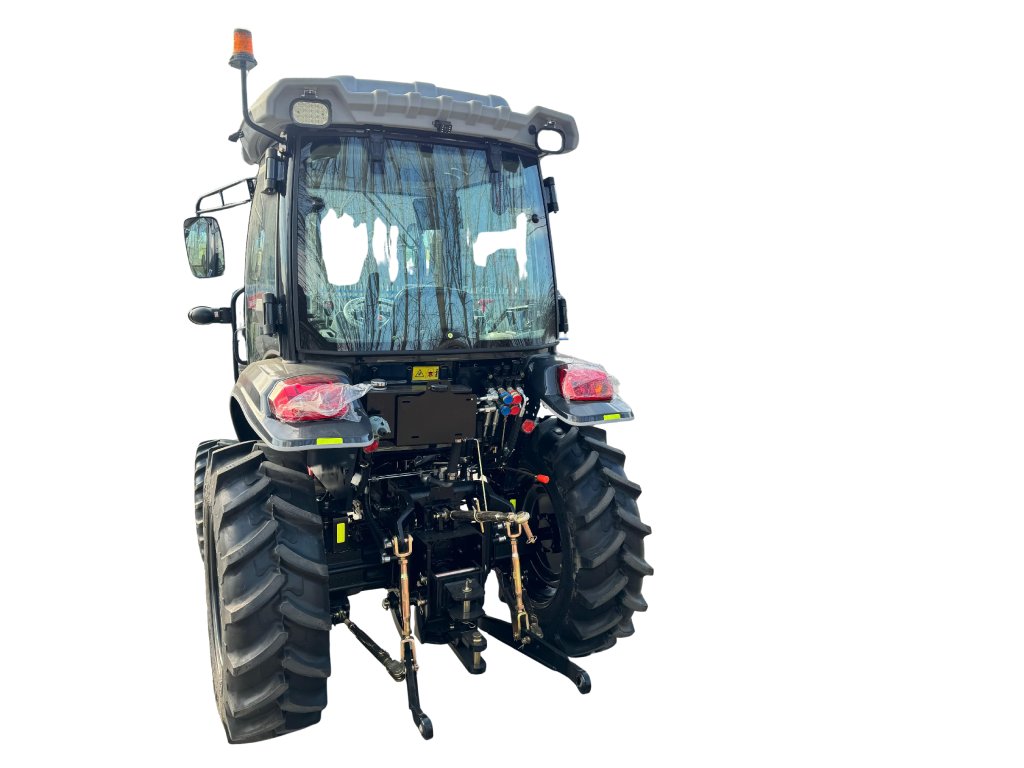

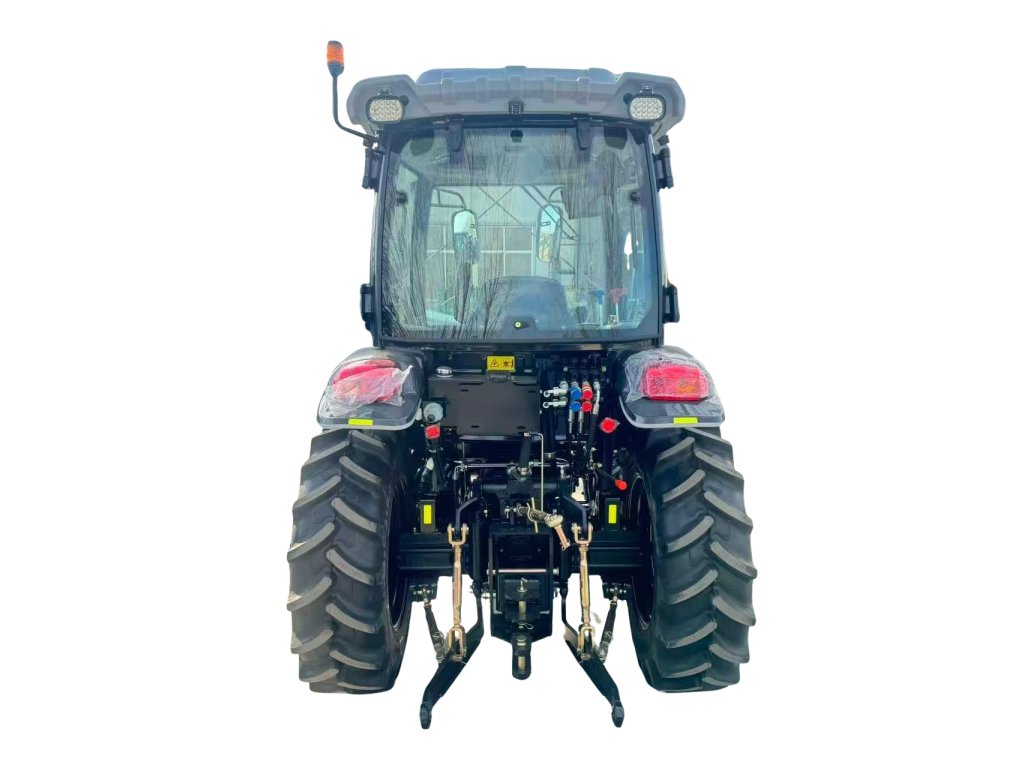

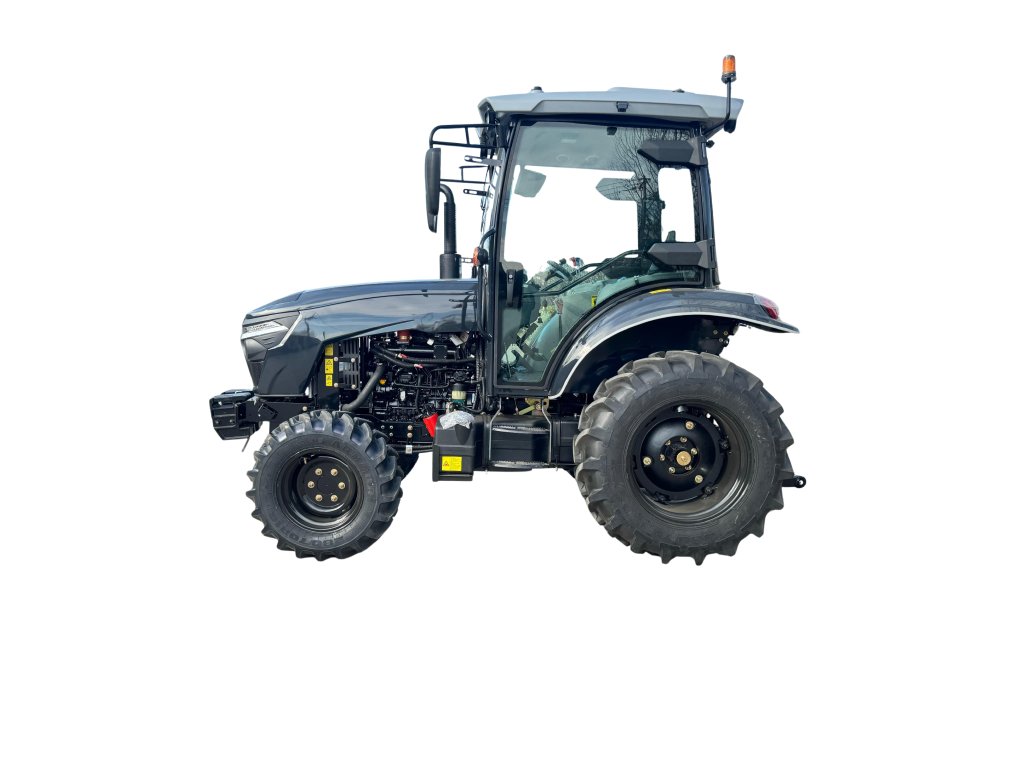

Tauros LX504 4×4 compact tractor
Tauros LX504 is the most affordable professional compact tractor in its class, offering 50 HP, 4×4 drive, and full road homologation (license plate). This tractor is ideal for municipal services, farmers, and demanding users who are looking for a powerful and reliable machine without unnecessary extras or surcharges.
| Category: | Tractors for professionals |
|---|---|
| Výkon: | 36,76 KW (50 HP) |
| Přední náhon (4WD): | Ano |
| Motor: | FAWDE (DEUTZ Diesel motor) |
| Počet válců: | 4 |
| Palivo: | diesel |
| Kapacita nádrže: | 50 l |
| Jmenovité otáčky motoru: | 2400 otáček/min |
| Jmenovitý výkon vývodové hřídele: | 31,25 KW |
| Vývodová hřídel (PTO): | 540/720 otáček/min. (6 zubů) |
| Převodovka: | dvoustupňová mechanická |
| Počet rychlostí: | 8F+8R |
| Systém brzd: | kotoučové brzdy |
| Rozsah rychlostí: | vpřed 5-33 km/h, na reverz 5-21 km/h |
| Pneumatiky (přední/zadní): | 8.3-20/12.4-28 |
| Tříbodový závěs: | dvojitý hydraulický olejový válec |
| Váha stroje (kg): | 1800 |
| Rozměry (mm): | 3200x1600x1950 |
| Hydraulický průtok: | 33,6 l/min |
| Kapacita zdvihu: | 860 kg |
| Vývody hydrauliky: | 2 skupiny (po čtyřech) |
| Uzávěrka diferenciálu: | Ano |
| Vybavení kabiny: | ventilátor + topení + pružinové sedadlo |
| Emisní třída: | Euro 4 |
| Účel: | Farmaření, vinohradnictví, komunální služby |
| Typ traktoru: | malotraktor |
Tauros LX504 4x4 – the most affordable professional tractor on the market
The black panther among mini tractors. The Tauros LX504 4x4 mini tractor delivers exactly what customers want today: professional parameters, 4x4, mechanics without unnecessary complexity, homologation (license plate) – and all this at a price level that makes it the most affordable professional mini tractor in its class.
The Tauros LX504 mini tractor is the ideal choice for customers who are looking for a full-fledged professional mini tractor with 50 horsepower, 4x4 drive and European homologation (license plate), but at the same time want to stay within a reasonable budget. The LX504 model is located exactly between the Tauros TE504 and Tauros HX504 series in terms of quality and price – it offers a robust technical basis, simple mechanics (without unnecessary electronics) and high utility value without unnecessary surcharges. Thanks to its attractive black design (Black Edition), it has earned the nickname “The Black Panther among mini tractors”. It is a machine that impresses with its design at first glance and convinces with its functionality during operation.
WHY LX504 4x4?
| SIMPLICITY The 8+8 mechanical transmission with shuttle shifting, robust construction and wet (oil) brakes ensure a long service life, minimal maintenance requirements and reliability even during intensive use.
|
E-mark (COC) The Tauros LX504 is a fully homologated tractor with the option of registration with a license plate, making it ideal for road transport and municipal use.
|
| STYLISH DESIGN The unique black color distinguishes the LX504 from ordinary tractors. It's not just about the appearance - the LX504 is a machine that represents professionalism and a modern approach.
|
BEST PRICE/PERFORMANCE RATIO The Tauros LX504 is one of the most affordable professional 50 hp tractors on the market. It offers everything essential for everyday work without the customer paying for unnecessary equipment.
|
Applications of the Tauros LX504 4×4
🚜 Agriculture and farming
Maintenance of meadows, pastures and smaller agricultural areas, work with mowers, mulchers and spreaders.
🏘️ Municipal services
Year-round maintenance of municipalities and public areas – mowing, sweeping and winter maintenance using basic municipal equipment.
🏡 Commercial premises and private properties

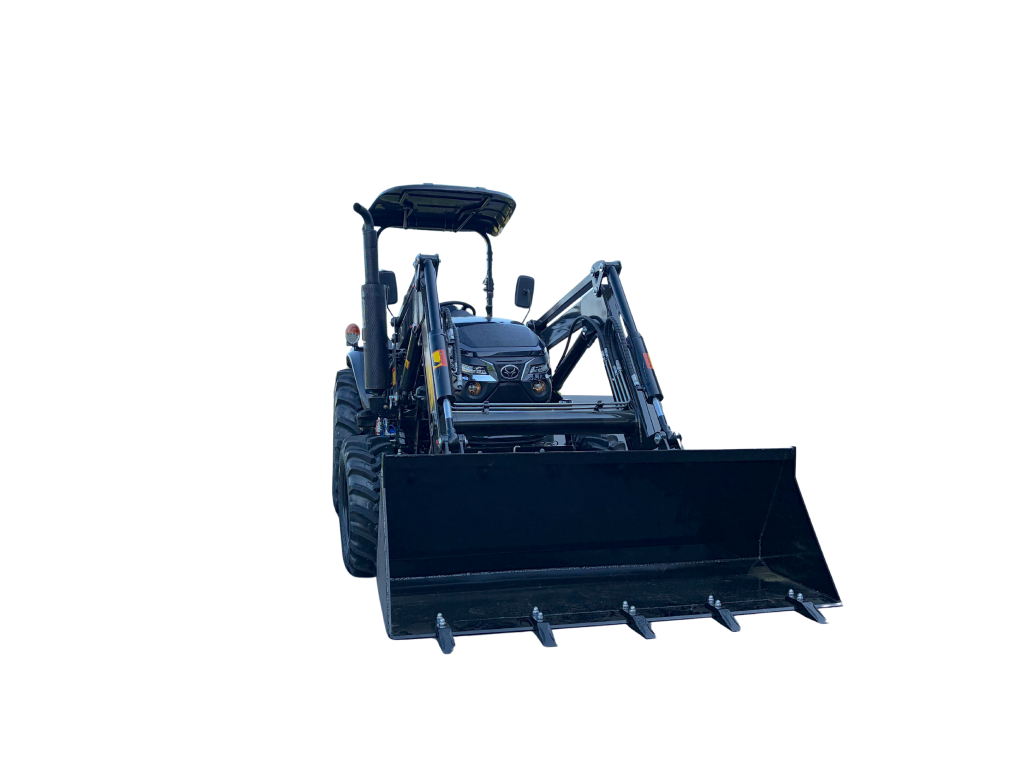

Maintenance of sites, land and surroundings of buildings, material handling when using a front loader.
🌲 Light forestry and off-road work
Work on forest roads, along forest edges and transport of materials in less demanding terrain.
❄️ Year-round operation
Use from spring through winter thanks to 4×4 drive, PTO 540/1000 and road homologation (registration plate).
TECHNICAL SPECIFICATIONS
| Model | Tauros LX504 | |
|---|---|---|
| Performance | Power | 36.76 kW/50 HP |
| Front Drive (4WD) | Yes | |
| Engine | Laidong | |
| Number of Cylinders | 4 | |
| Fuel | Diesel | |
| Fuel Tank Capacity | 50 L | |
| Engine Rated Speed | 2400 rpm | |
| Rated PTO Power | 32.5 kW | |
| PTO Shaft Speed | 540/1000 rpm | |
| Transmission | Mechanical - shuttle | |
| Number of Gears | 8F + 8R | |
| Other Parameters | Braking System | Wet oil brakes |
| Speed Range | F: 1.9-29.3 km/h, R: 1.8-19.5 km/h | |
| Tires (Front/Rear) | F: 280/70R16; R: 360/70R24 | |
| Machine Weight (kg) | 1955 | |
| Dimensions (mm) | 3 548 × 1 605 × 2 540 | |
| Ground clearance (mm) | 277 | |
| Slope ability | 15° (≈ 27 %) | |
| Turning radius (mm) | 4000 | |
| Hydraulic Flow | 44 l/min | |
| Lifting Capacity | 1100 kg | |
| Hydraulic Outlets | 2 pairs | |
| Differential Lock | Yes | |

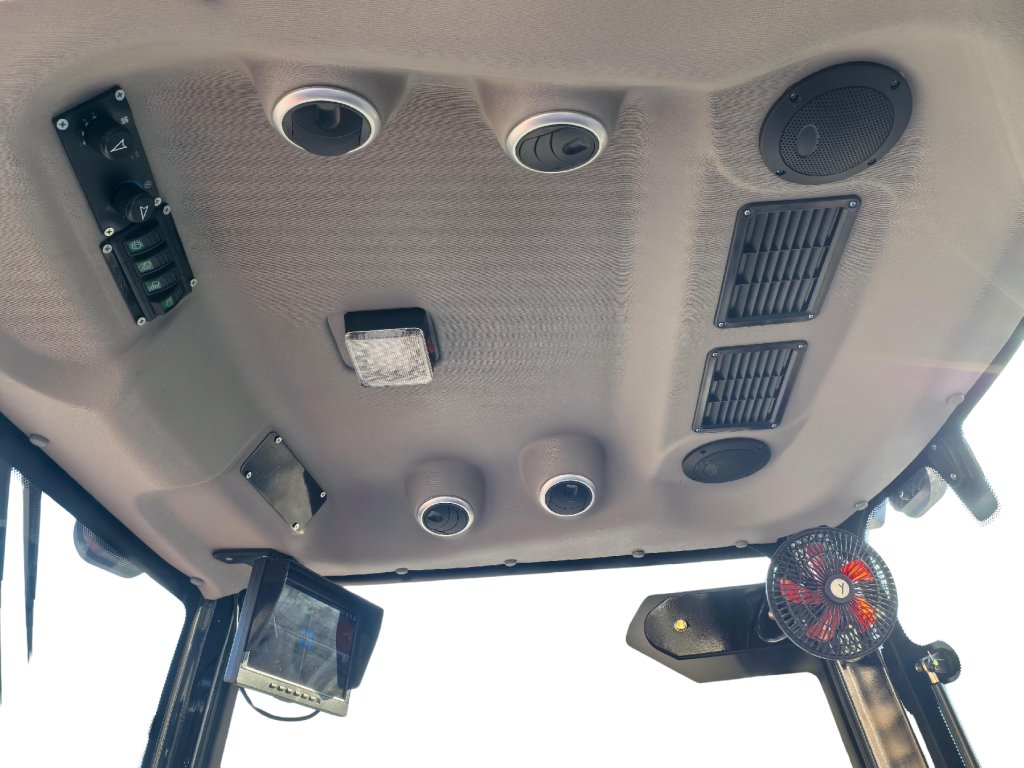

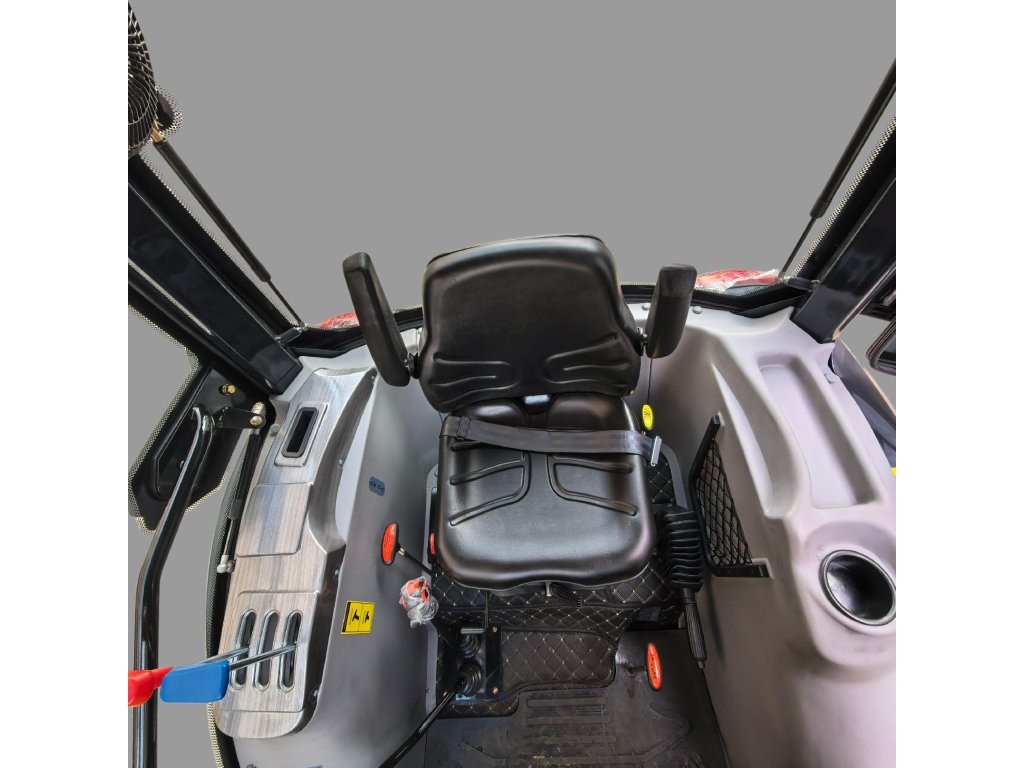

| Standards | Cab Equipment | Air condition; heating; grammer seat |
| Emission | Euro 5 | |
| COC | Yes | |
| Purpose | Farming, viticulture, municipal services | |
