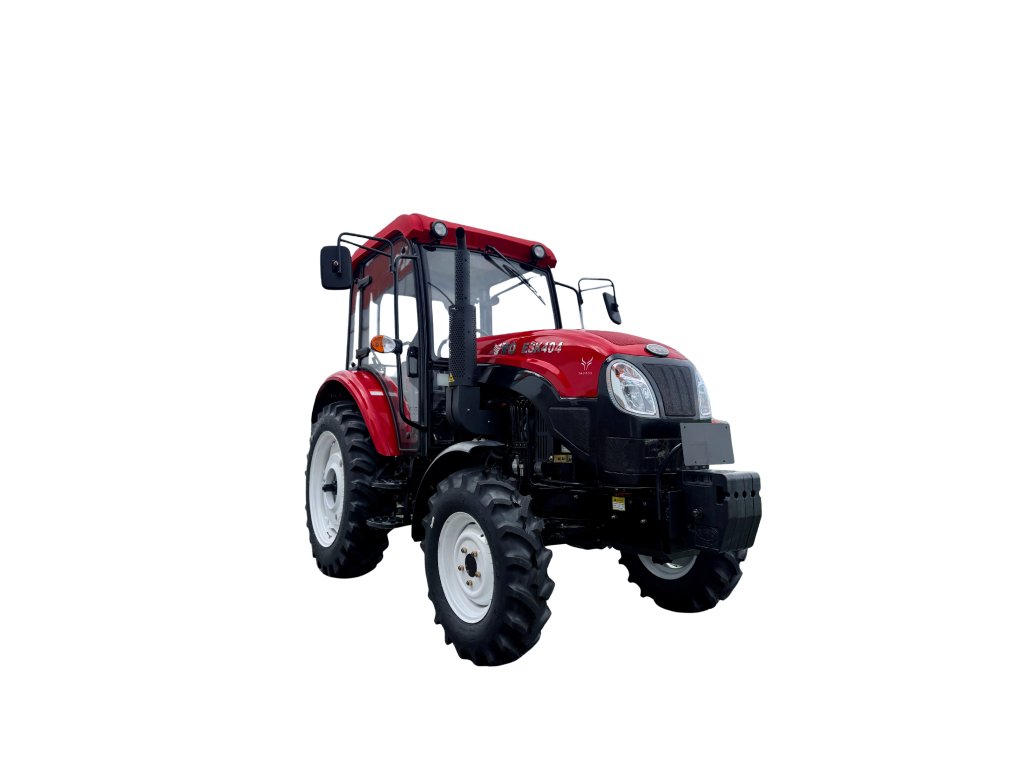

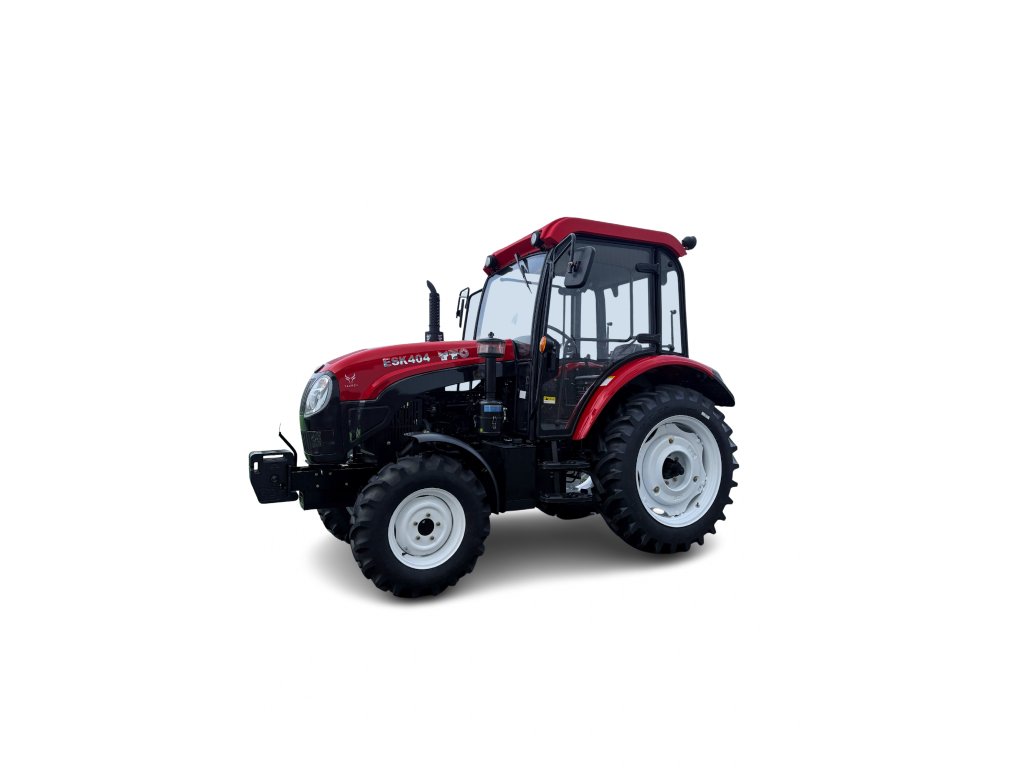

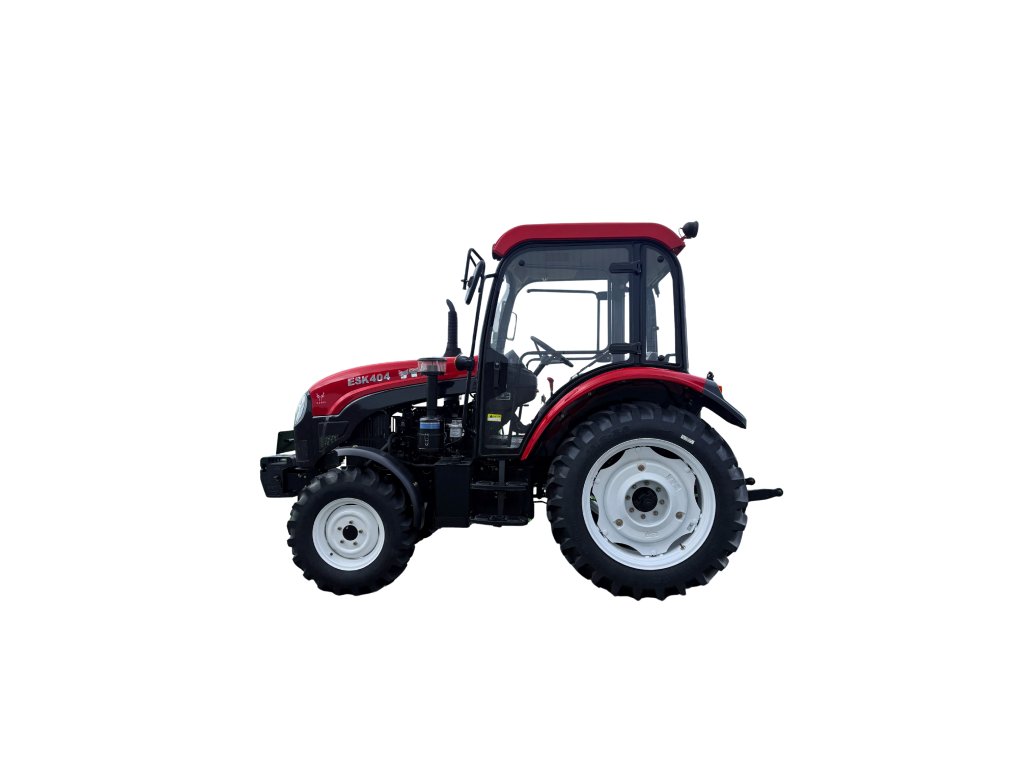

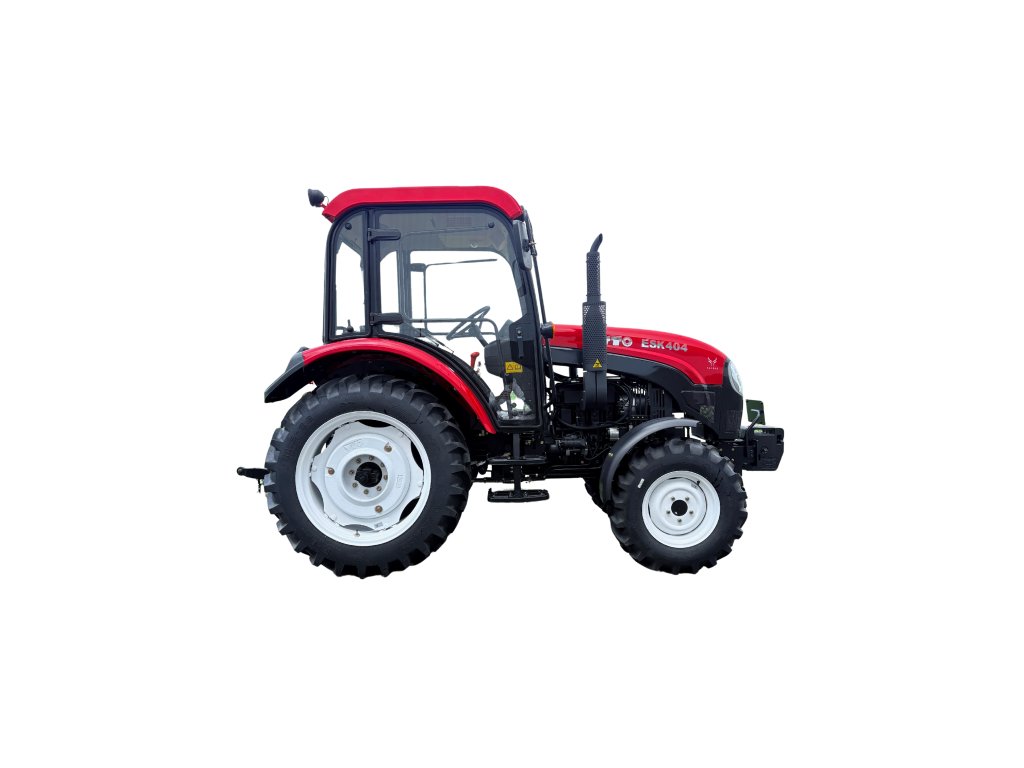

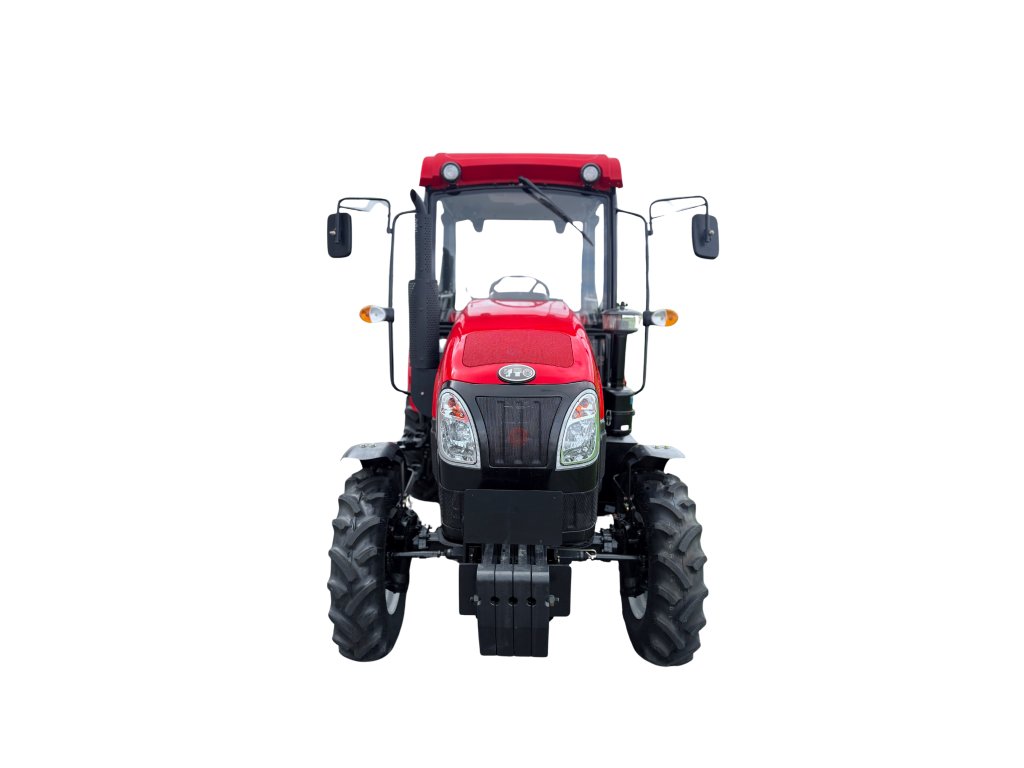

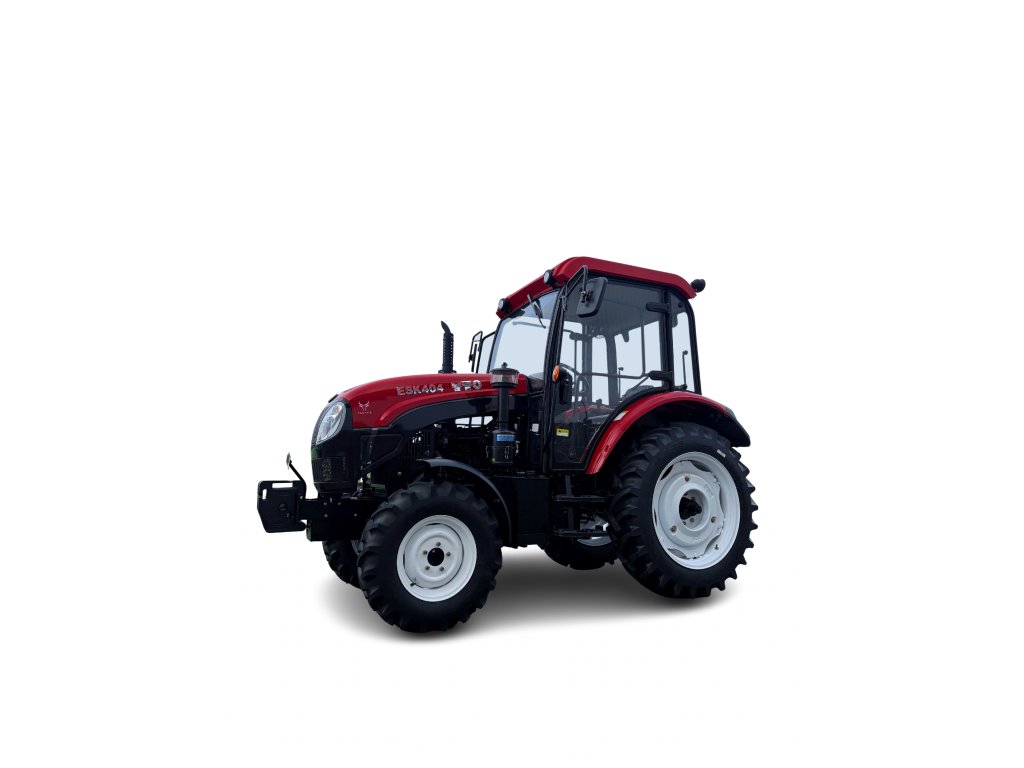

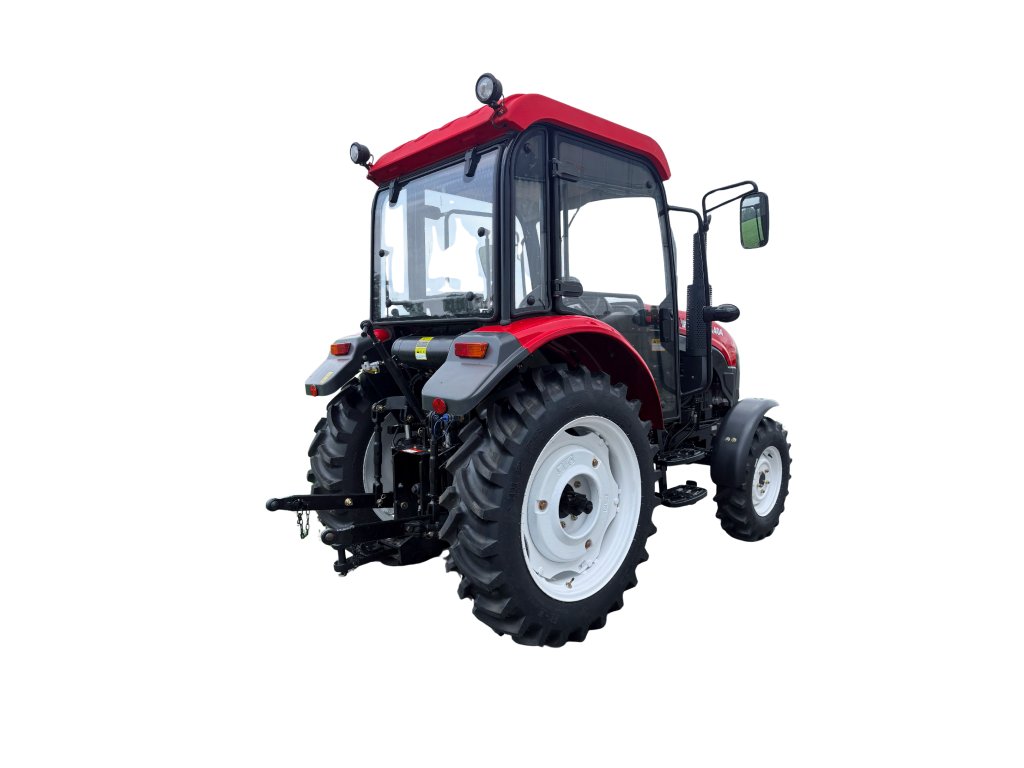

YTO ESK404
The YTO ESK404 is a robust 40 hp compact tractor that combines a simple design, durable components and modern equipment for a wide range of applications in agriculture, viticulture, orchard work and forestry. This model offers an excellent price-to-performance ratio and guaranteed availability of spare parts thanks to the direct cooperation between the Tauros brand and YTO, the largest tractor manufacturer in China.
| Category: | Products |
|---|---|
| Výkon: | 52,1 KW (70 HP) |
| Přední náhon (4WD): | Ano |
| Motor: | DOOSAN; DM02-MFA22 |
| Počet válců: | 4 |
| Palivo: | diesel |
| Kapacita nádrže: | 55 l |
| Jmenovité otáčky motoru: | 2300 otáček/min |
| Jmenovitý výkon vývodové hřídele: | 45 KW |
| Vývodová hřídel (PTO): | 540/1000 otáček/min |
| Převodovka: | synchronizovaná |
| Počet rychlostí: | 12F+12R |
| Systém brzd: | kotoučové, mokré |
| Rozsah rychlostí: | 2,82-29,85 km/h |
| Pneumatiky, přední/zadní: | radiální; 300/70R20; 420/85R24 |
| Váha stroje (kg): | 3200 |
| Rozměry (mm): | 4070x1820x2530 |
| Kapacita zdvihu: | 1600 kg |
| Vývody hydrauliky: | 2 páry |
| Uzávěrka diferenciálu: | Ano |
| Vybavení kabiny: | topení + klimatizace + rádio |
| Další vybavení: | přední blatník |
| Certifikace: | E-Mark; COC |
| Emisní třída: | Euro 5 |
| Účel: | Farmaření, lesnictví, komunální služby |
YTO ESK404 – A Reliable Workhorse for Versatile Use
The YTO ESK404 is a 4×4 compact tractor with the option to switch off the front-wheel drive. It is powered by a four-cylinder YTO YND490T engine. Thanks to its simple mechanical design, it offers low operating costs, easy maintenance and a long service life.
The basic configuration includes an 8 forward / 2 reverse (8F+2R) transmission. In versions equipped with a front loader, the tractor features an 8F+8R shuttle transmission for easy manoeuvring. The tractor is available with a heated cab or an open ROPS frame with canopy, powerful hydraulics with two circuits, a PTO 540/1000 rpm, and air brakes.
It is an ideal machine for users seeking maximum utility without unnecessary complexity. A strong point of the ESK404 is its versatility and readiness for a wide range of attachments – from mowing and loading to winter maintenance.
Standard Equipment – YTO ESK404 (STANDARD)
-
8F + 8R shuttle transmission – shuttle lever under the steering wheel (front loader configuration)
-
Dual-stage clutch – for smooth take-off and PTO operation
-
Front and rear tyres – 7.50-16 / 12.4-24, white rims
-
Rear hitch – towing device with swivelling drawbar, suitable for inter-row work (e.g. when using a spreader)
-
Category I three-point linkage (Category II balls) – draft/position control, vertical lifting mechanism
-
2 pairs of hydraulic outlets – European quick couplings
-
Air brake system – including quick coupling and tyre inflation system
-
Front mudguards – protection against mud and damage (only on versions without a front loader)
-
Weights – front (4 × 20 kg), rear (2 × 50 kg)
-
Cab with heating and fan – or, for open versions, ROPS protective frame with canopy
TZ04D Front Loader Specifications
The TZ04D is a powerful front loader designed for YTO ESK404 and larger tractors, intended for users who require greater lift height, larger bucket capacity and a more robust construction.
With a maximum lift height of 2,820 mm, a 1,400 mm wide bucket and a lifting capacity of 400 kg, it is ideal for demanding handling of soil, manure, bales or bulk materials.
The loader is equipped with hydraulic control with two circuits, quick coupling and a bucket. Its construction is designed for frequent use and performs reliably even in heavy terrain or winter conditions.
|
Parametr |
TZ04D |
|
Max. výška zdvihu v čepu nářadí |
2820 mm |
|
Výška výsypu |
2140 mm |
|
Přeplňovací výška |
2670 mm |
|
Vzdálenost výsypu |
600 mm |
|
Světlá výška v čepu ramen |
1360 mm |
|
Max. úhel naklopení |
46° |
|
Úhel vysypání |
49° |
|
Naklopení při spuštěném rameni |
135° |
|
Hloubka rýpání |
100 mm |
|
Zdvihová síla v čepu nářadí |
2144 kg |
|
Šířka lopaty |
1400 mm |
|
Objem lopaty |
0.21 m³ |
|
Jmenovitá nosnost |
400 kg |
WHY YTO ESK404?
| DURABILITY The resilience and reliability proven under the most demanding conditions of the Chinese countryside (rice fields, monsoon rains, sudden temperature changes) make it an ideal choice for any professional. |
ROBUSTNESS A solid axle, robust tractor frame, radial tires, and front/rear ballast facilitate work in any terrain. |
| ECONOMY The tractor's core, featuring the award-winning DOOSAN engine combined with functional elements from New Holland, offers performance, low consumption, and easy, intuitive operation. |
QUALITY AT AN AFFORDABLE PRICE Precise workmanship, top-notch technology, uncompromising equipment, including air brakes and a suspension seat, at an unbeatable price. |
TECHNICAL SPECIFICATIONS
| Model | YTO NMF704c | |
|---|---|---|
| Performance | Power | 52.1 kW (70 HP) |
| Front Drive (4WD) | Yes | |
| Engine | DOOSAN; DM02-MFA22 | |
| Number of Cylinders | 4 | |
| Fuel | Diesel | |
| Fuel Tank Capacity | 55 L | |
| Engine Rated Speed | 2300 rpm | |
| Rated PTO Power | 45 kW | |
| PTO Shaft Speed | 540/1000 rpm | |
| Transmission | Synchronized | |
| Number of Gears | 12F+12R | |
| Other Parameters | Braking System | Wet disc brakes |
| Speed Range | 2.82-29.85 km/h | |
| Tires (Front/Rear) | Radial; 300/70R20; 420/85R24 | |
| Machine Weight (kg) | 3200 | |
| Dimensions (mm) | 4070x1820x2530 | |
| Lifting Capacity | 1600 kg | |
| Hydraulic Outlets | 2 pairs | |
| Differential Lock | Yes | |
| Standards | Cabin Equipment | Heating + Air Conditioning + Radio |
| Additional Equipment | Front fender | |
| Certification | E-Mark; COC | |
| Emissions Class | Euro 5 | |
| Purpose | Farming, Forestry, Municipal Services | |
