TECHNICAL SPECIFICATIONS
Not rated

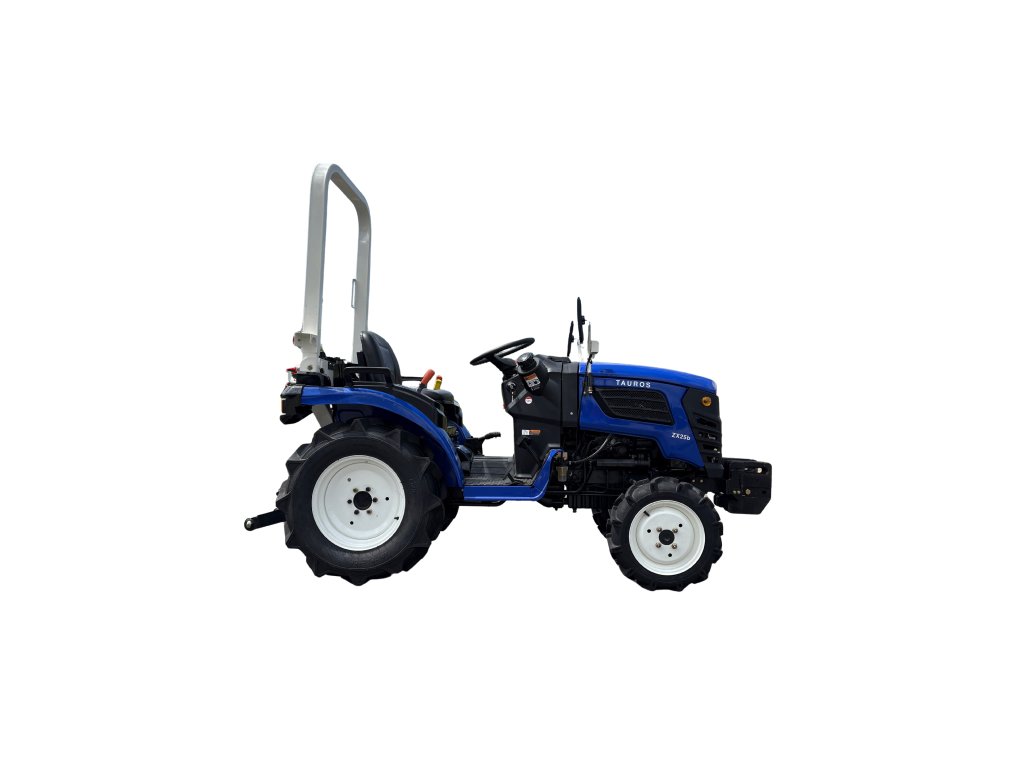

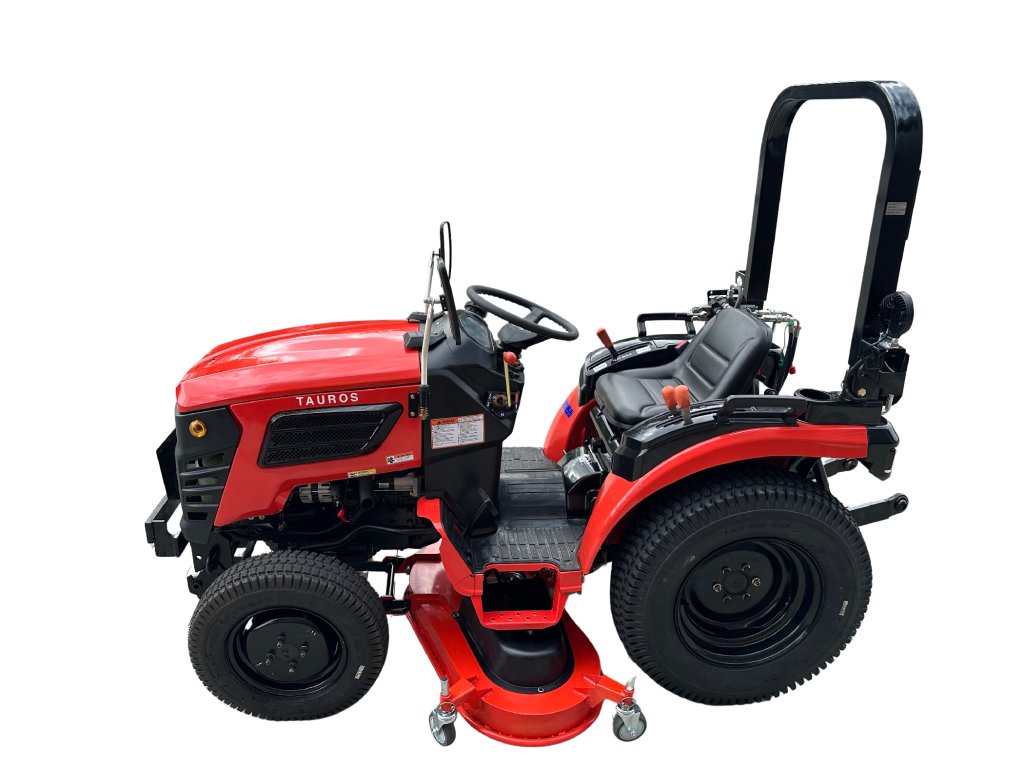

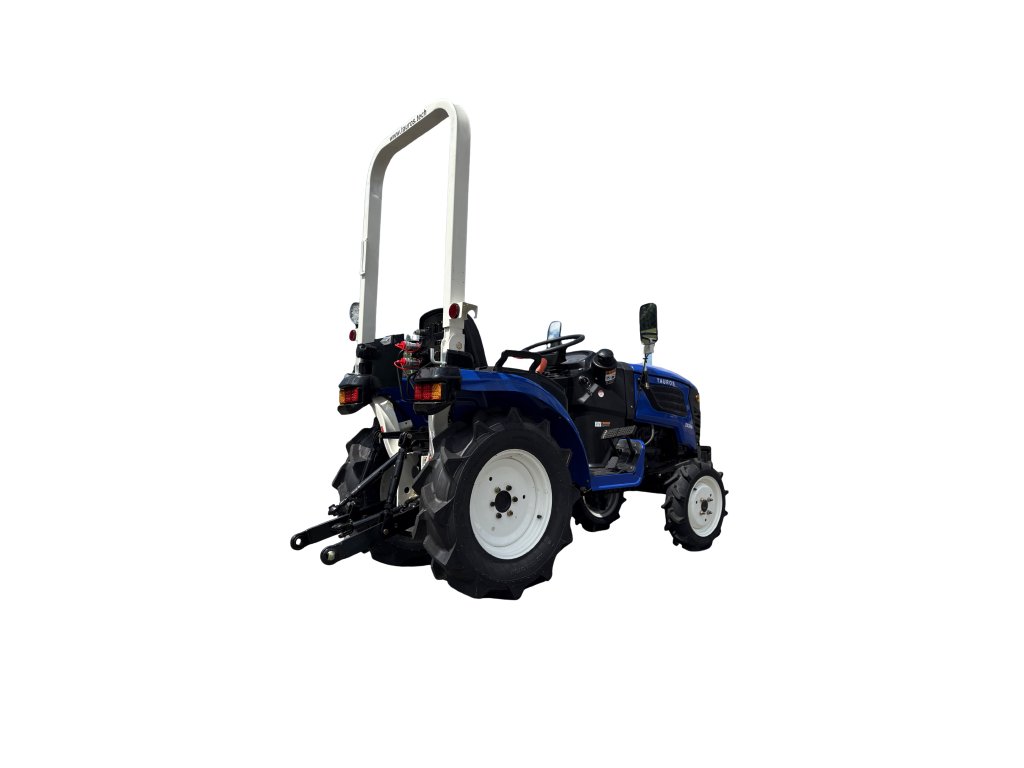

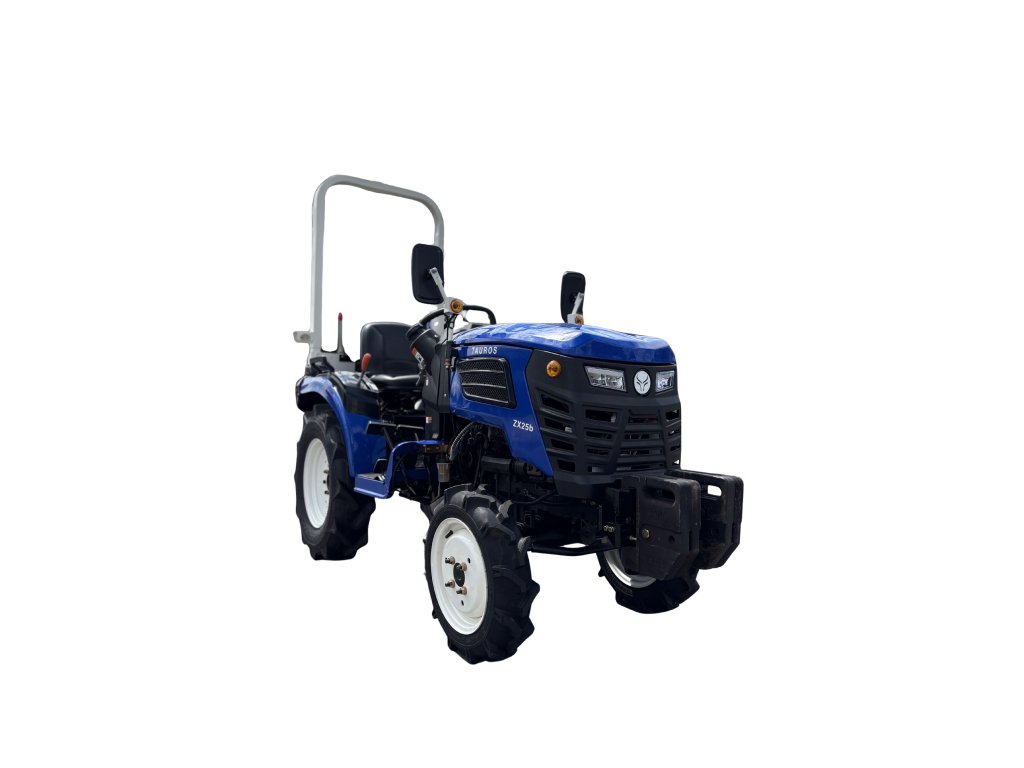

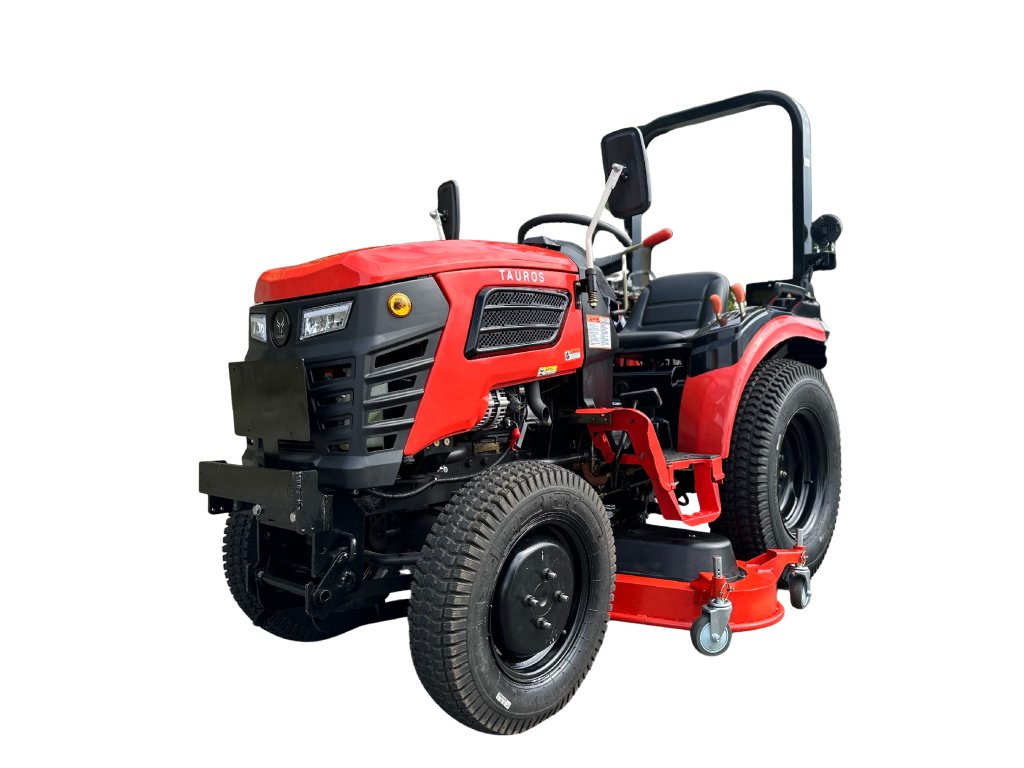

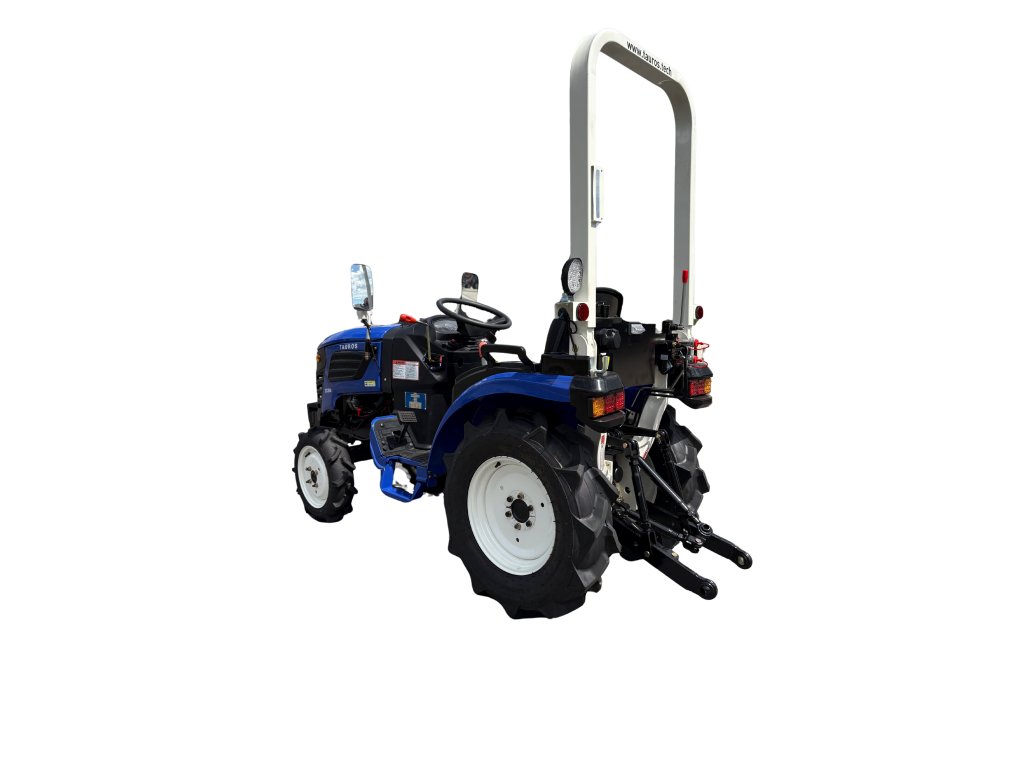

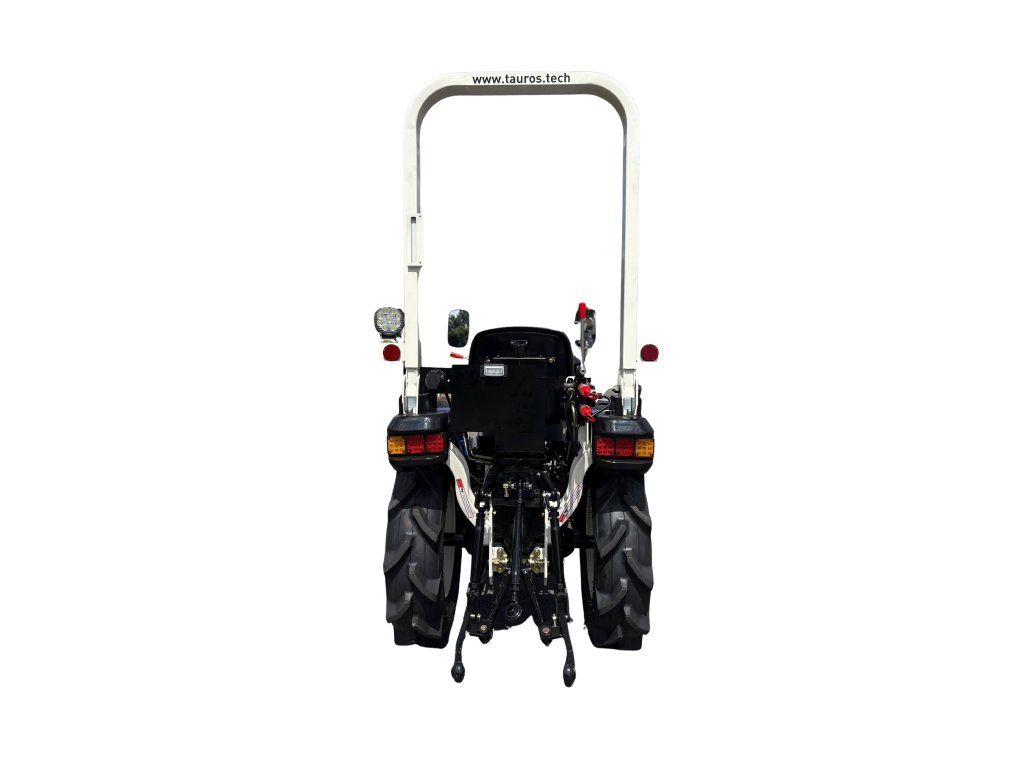

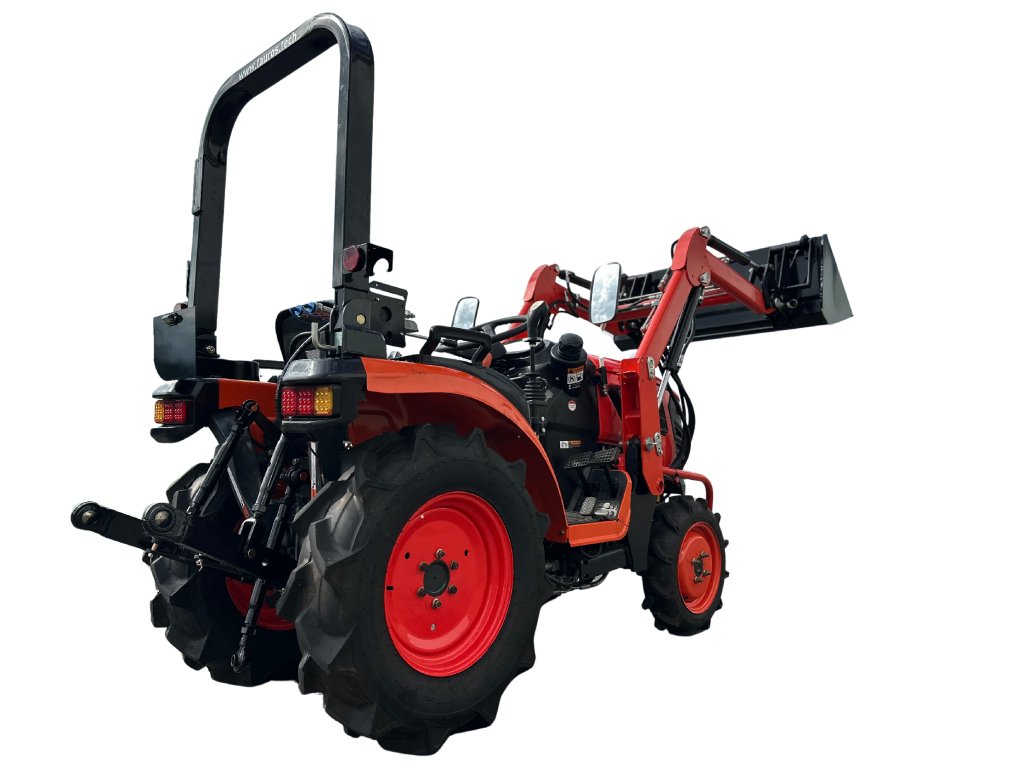

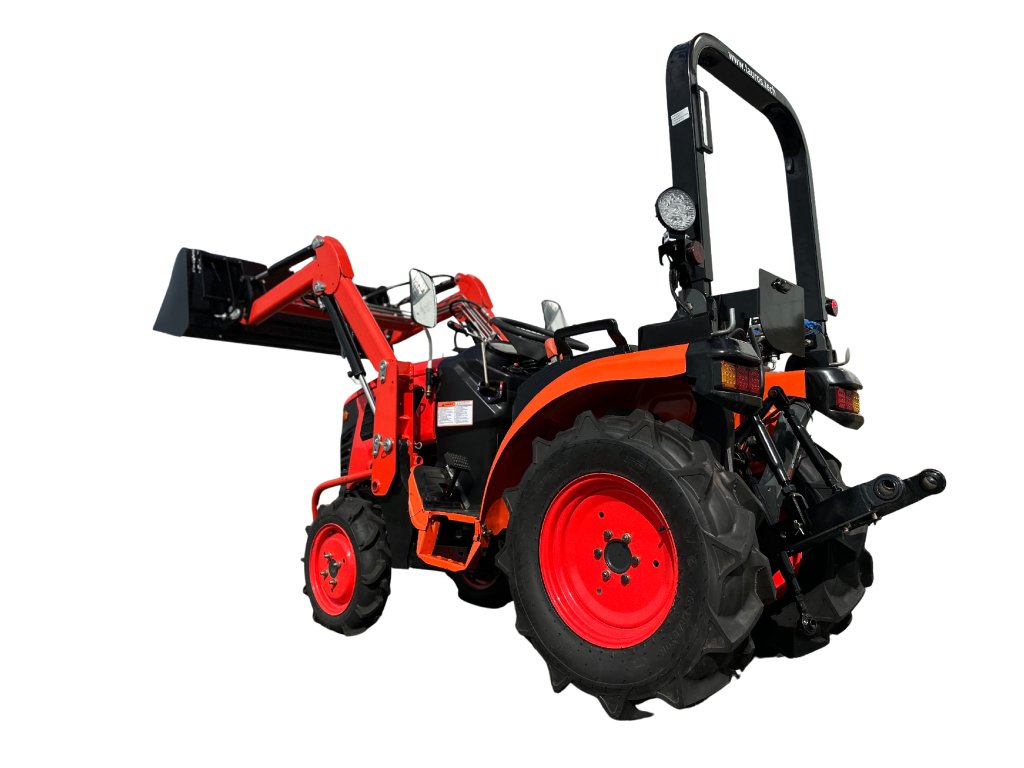

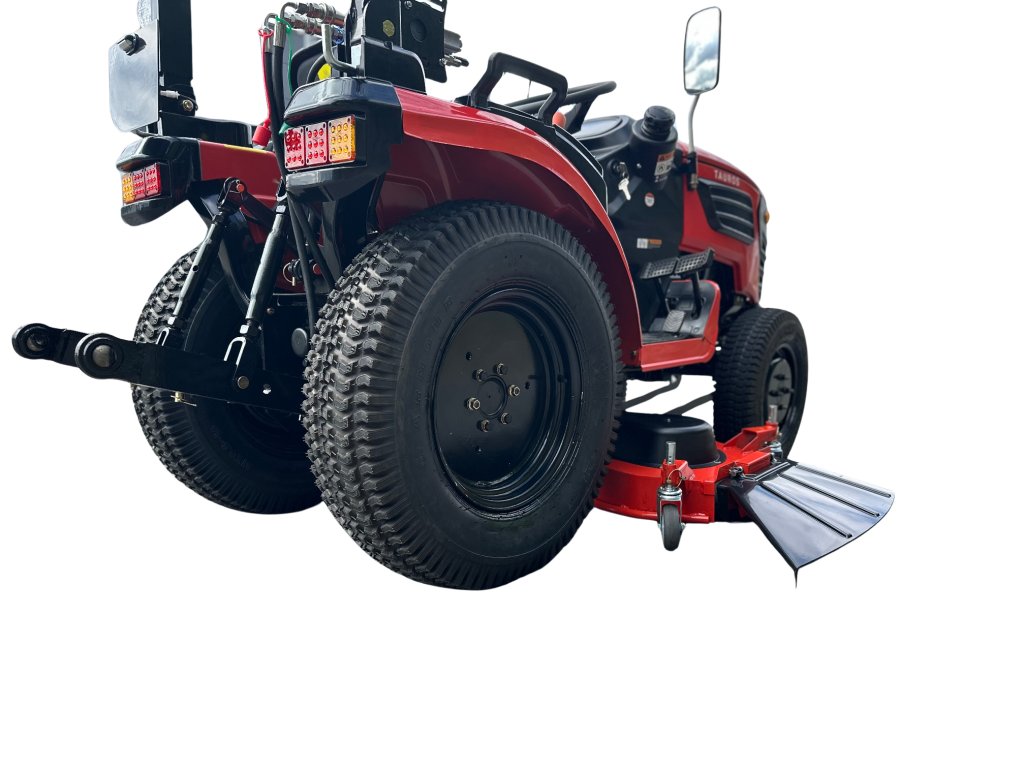

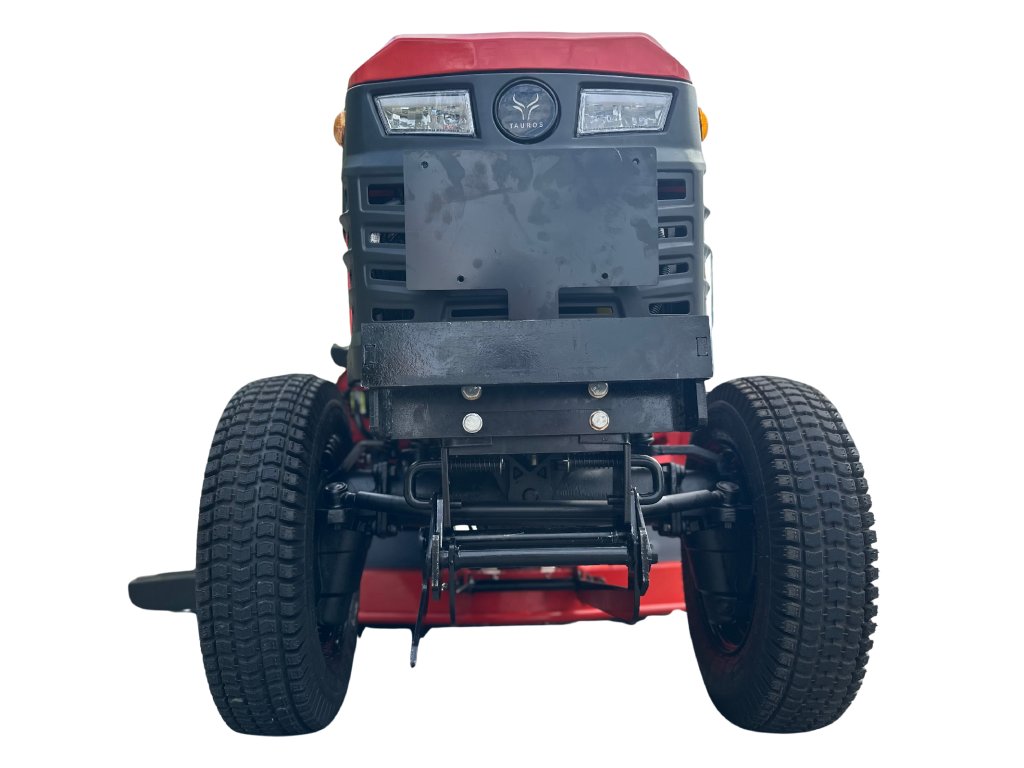

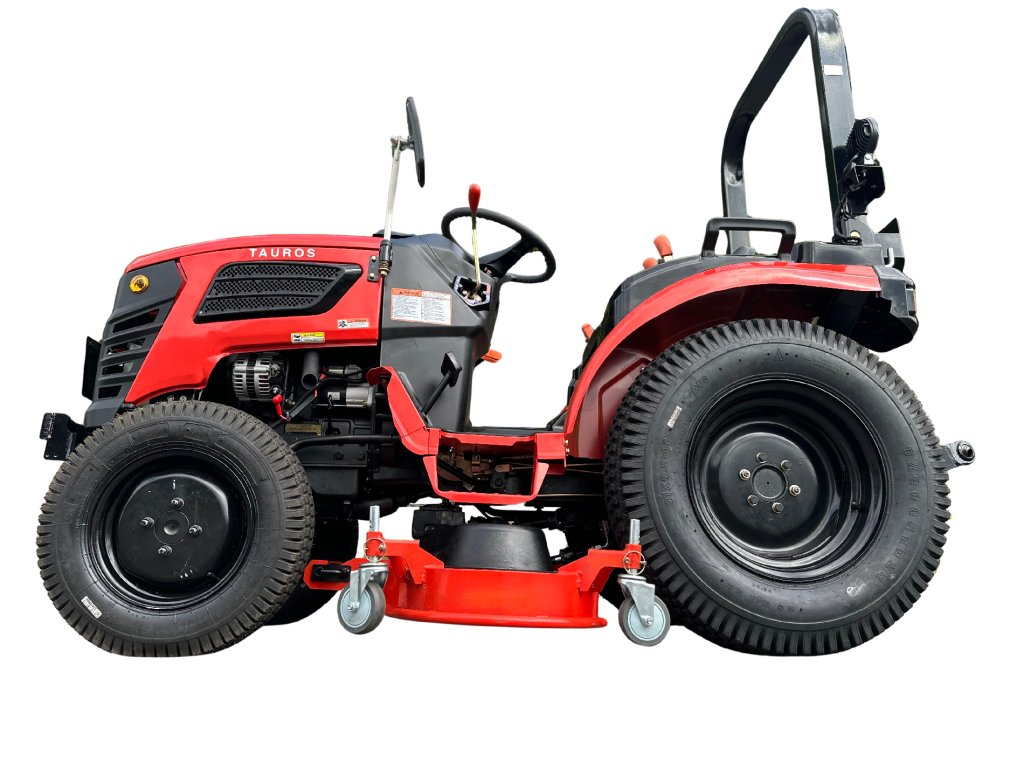

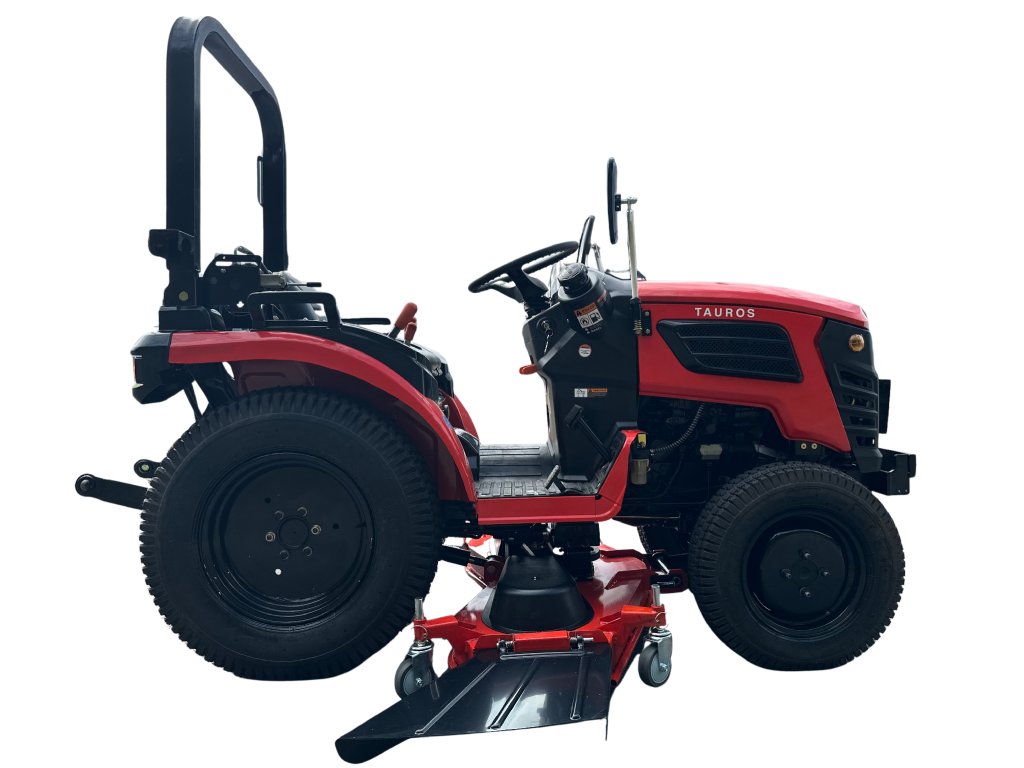

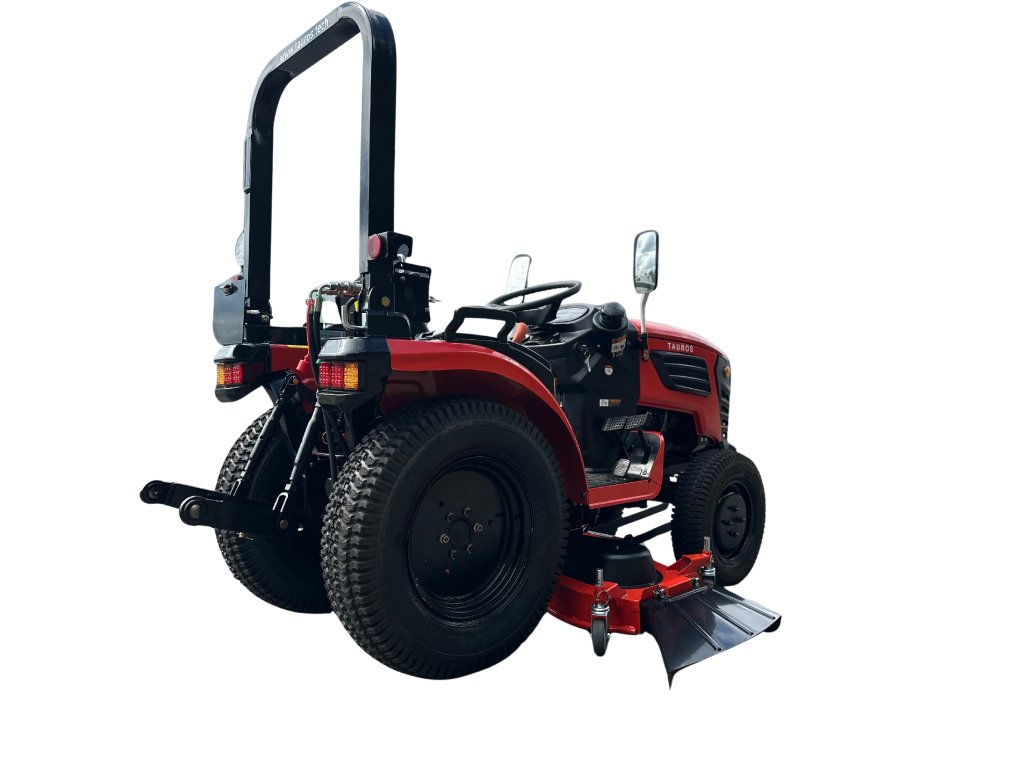

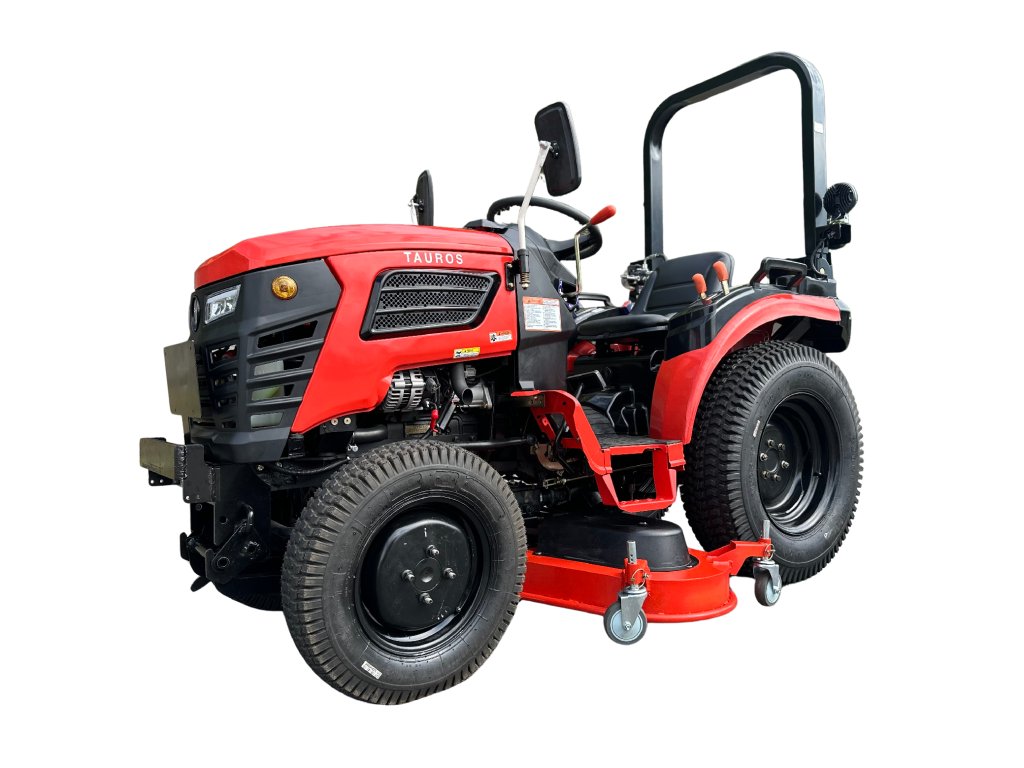

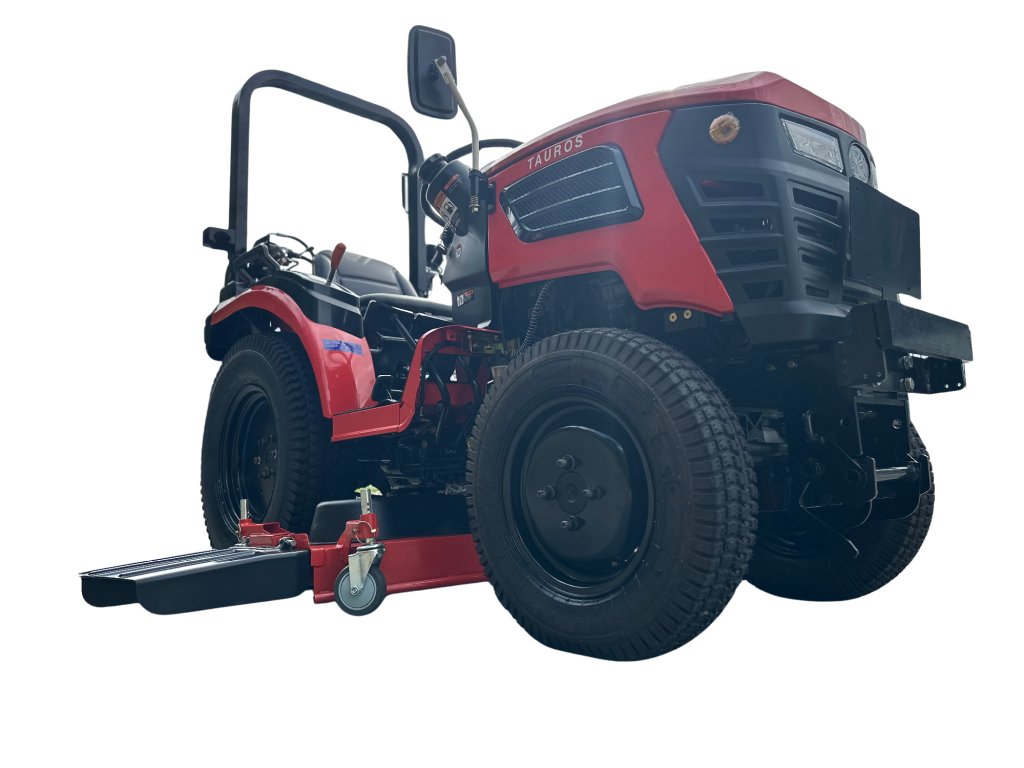

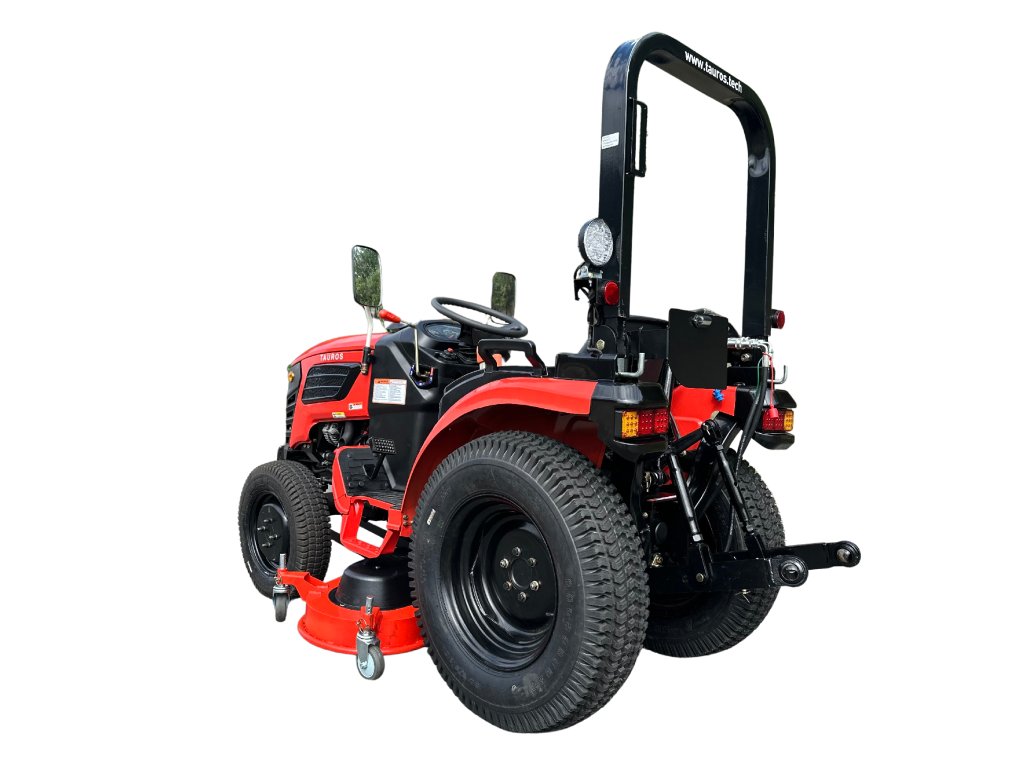

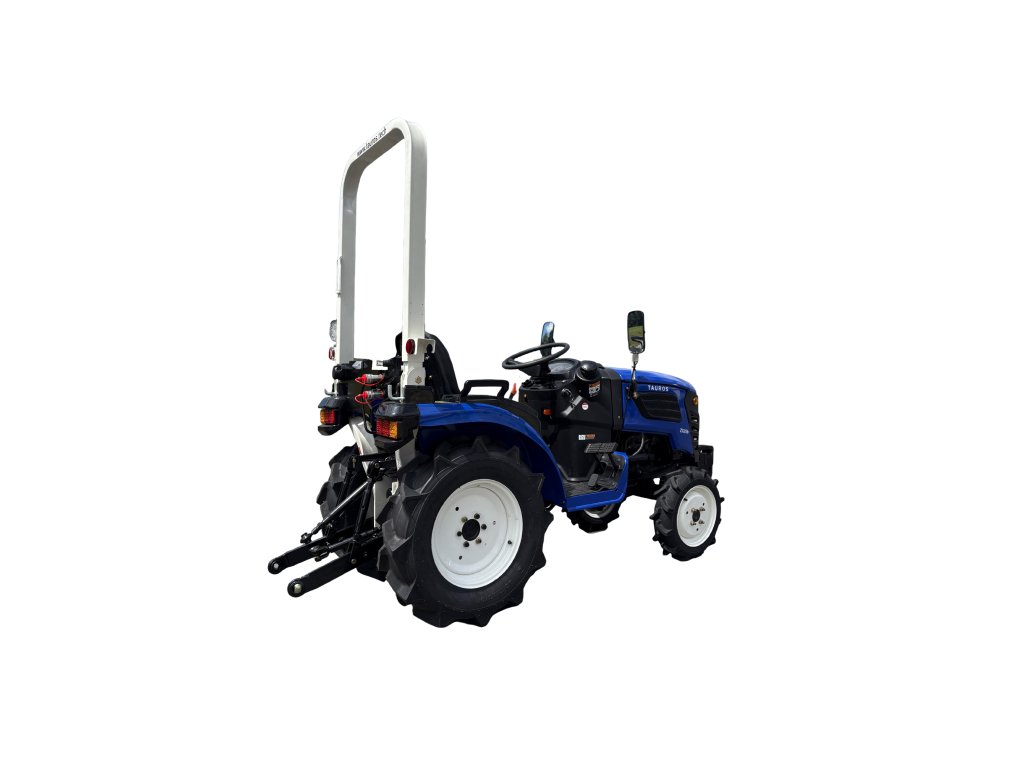

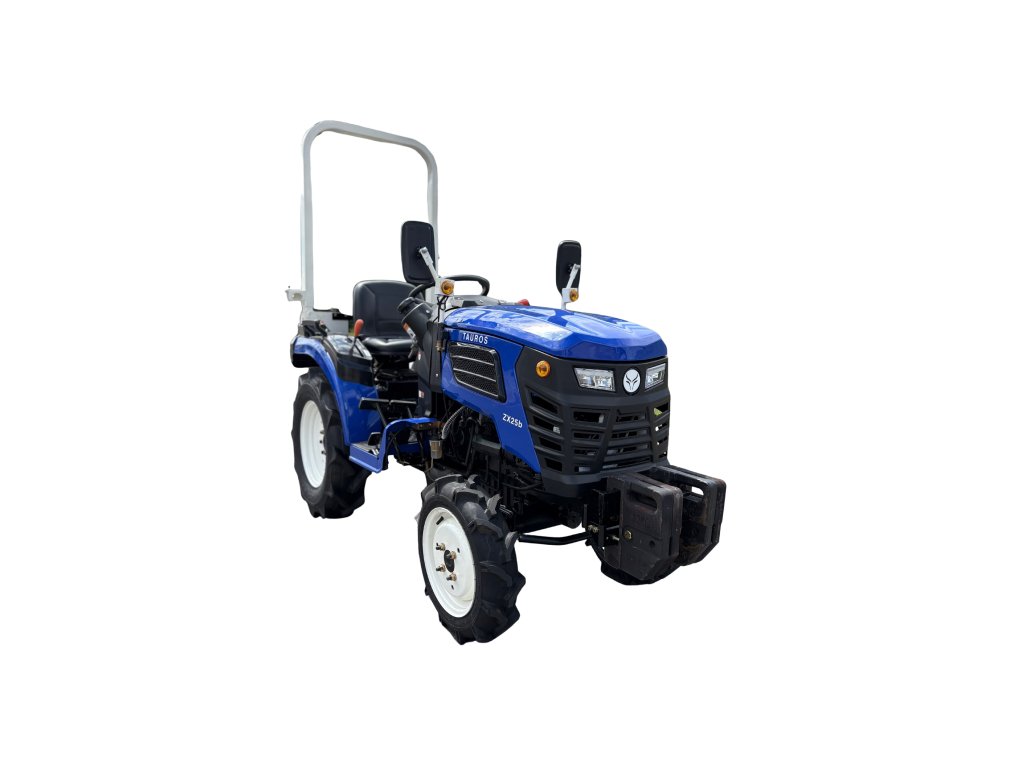

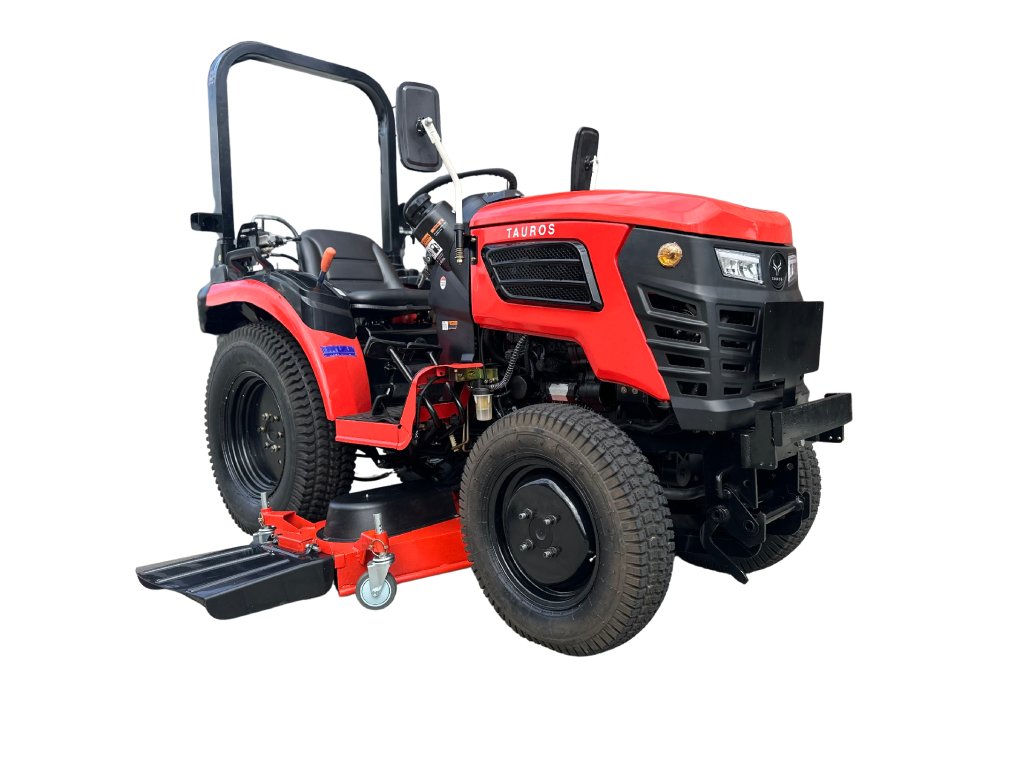

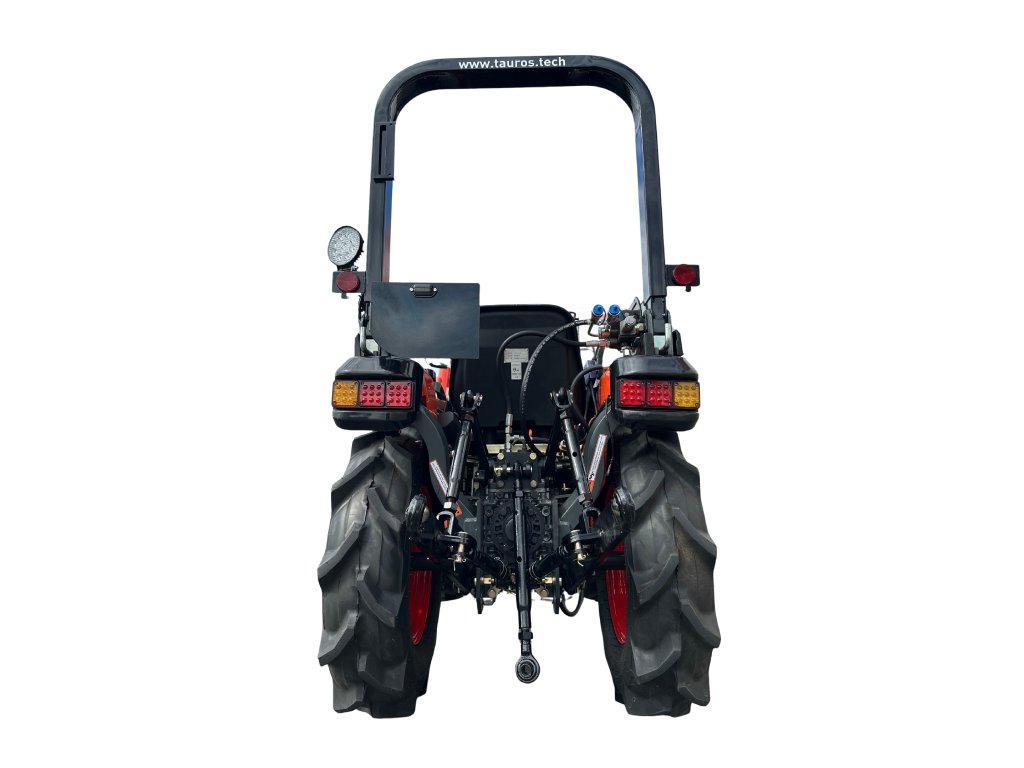

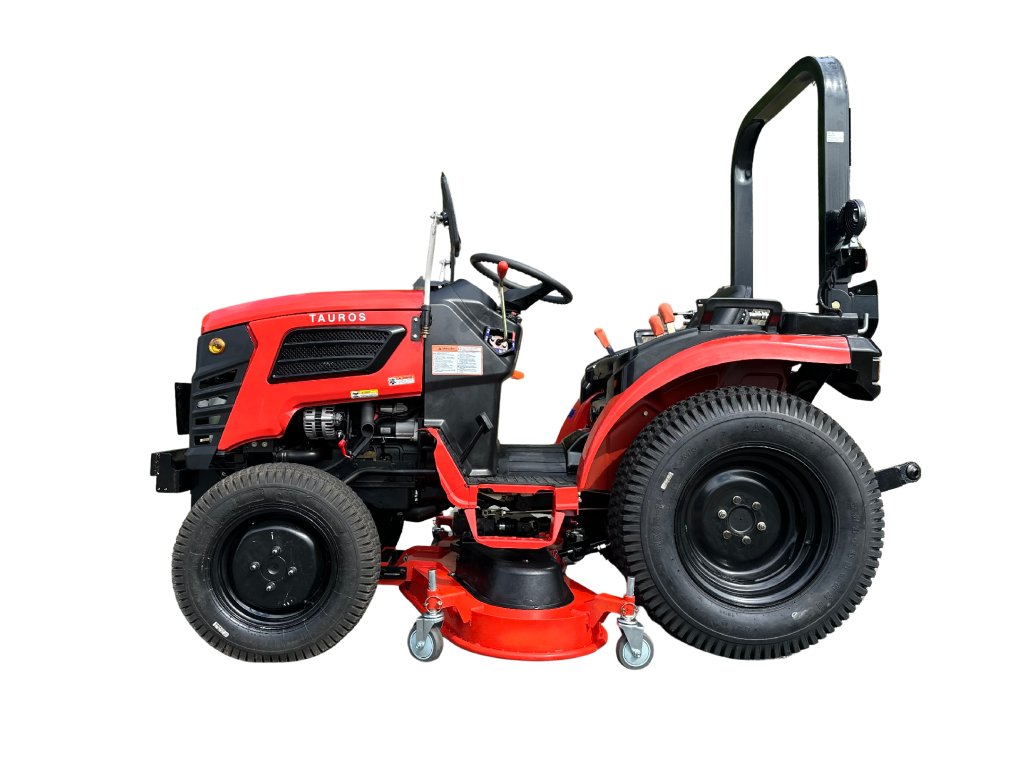

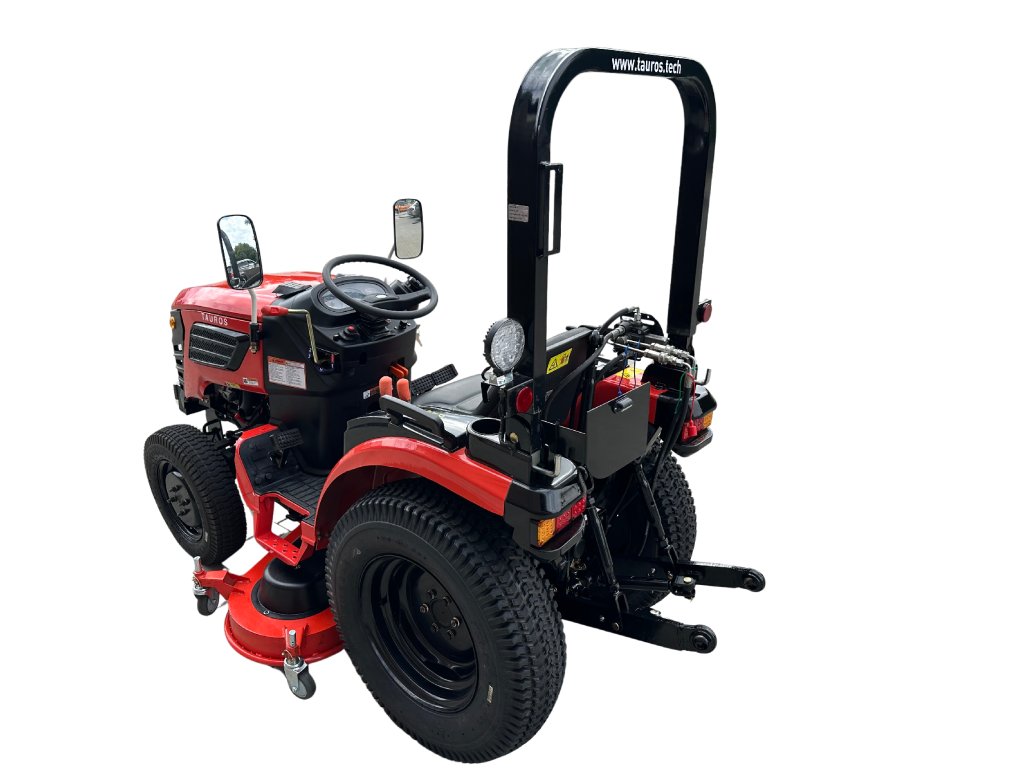

Tauros ZX25 4×4 compact tractor
The Tauros ZX25 4×4 delivers premium functionality typically found in higher-class machines – at a price affordable not only for gardeners, but also for hobby farmers and smaller municipalities. Thanks to its versatility and low maintenance requirements, it is an ideal long-term investment for anyone looking for a reliable workhorse for many years to come.
| Category: | Tractors for gardeners |
|---|---|
| Výkon: | 18 KW/24,5 koní |
| Obsah motoru: | 1 130 ccm |
| Přední náhon (4WD): | Ano |
| Typ motoru: | SEEYES XY377-A/XY377-B |
| Počet válců: | 3 |
| Palivo: | diesel |
| Kapacita nádrže: | 14 l |
| Jmenovité otáčky motoru: | 3200 otáček/min. |
| Pohon pro příslušenství: | hřídel (kardan) |
| Jmenovitý výkon (PTO): | 17,3 KW/23,5 koní |
| Rychlost hřídele: | 623/635/1116 otáček/min. |
| Převodovka: | mechanická |
| Počet rychlostí: | 6F + 2R |
| Rychlost (reverzní): | min. 1,48 km/h; max. 8,35 km/h |
| Rychlost (běžná: | min. 4,17 km/h; max. 15 km/h |
| Váha stroje (kg): | 590 |
| Rozměry (mm): | 2500×970×1840 |
| Výška nad zemí (cm): | 28,5 |
| Pneumatiky (přední/zadní): | 5-12; 8-16 |
| Uzávěrka diferenciálu: | Ano |
| Emisní třída: | Euro 4 |
| Účel: | Zahrádkářství, vinohradnictví, komunální služby |
| Typ traktoru: | malotraktor |
Compact power for gardeners and hobby farmers
Tauros ZX25 series compact tractors stand out with their compact dimensions, robust construction and high-quality workmanship reminiscent of Japanese machines – but at a fraction of their price. They are ideal for gardeners, small farmers and municipalities.
The range is available in two main versions: Tauros ZX25a and Tauros ZX25b.
The Tauros ZX25 4×4 compact tractors are powered by a diesel engine that delivers ample power for working with a wide range of attachments – whether ploughing, mowing or transporting materials. Thanks to the 9+3 gearbox (9 forward gears, 3 reverse), you have full control over performance depending on load and terrain.
They also feature a PTO with dual speed ranges and reverse rotation, an exceptional feature in this class.
Tauros ZX25a 4×4 – Reliable three-cylinder for versatile use
The Tauros ZX25a 4×4 is equipped with a three-cylinder diesel engine with a maximum output of 25 hp. It is the ideal choice for users looking for excellent manoeuvrability, low fuel consumption and simple maintenance.
Thanks to its simplicity and durable construction, it is perfectly suited for work in gardens, orchards and light agricultural tasks. Compact dimensions allow easy handling even in confined spaces.

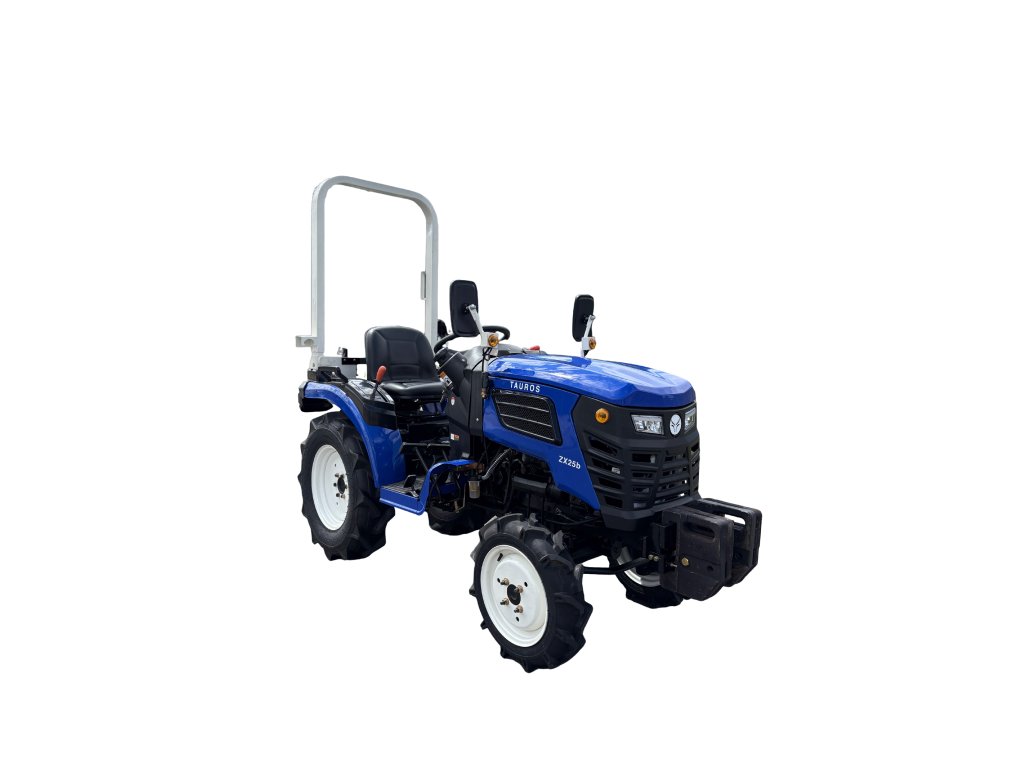

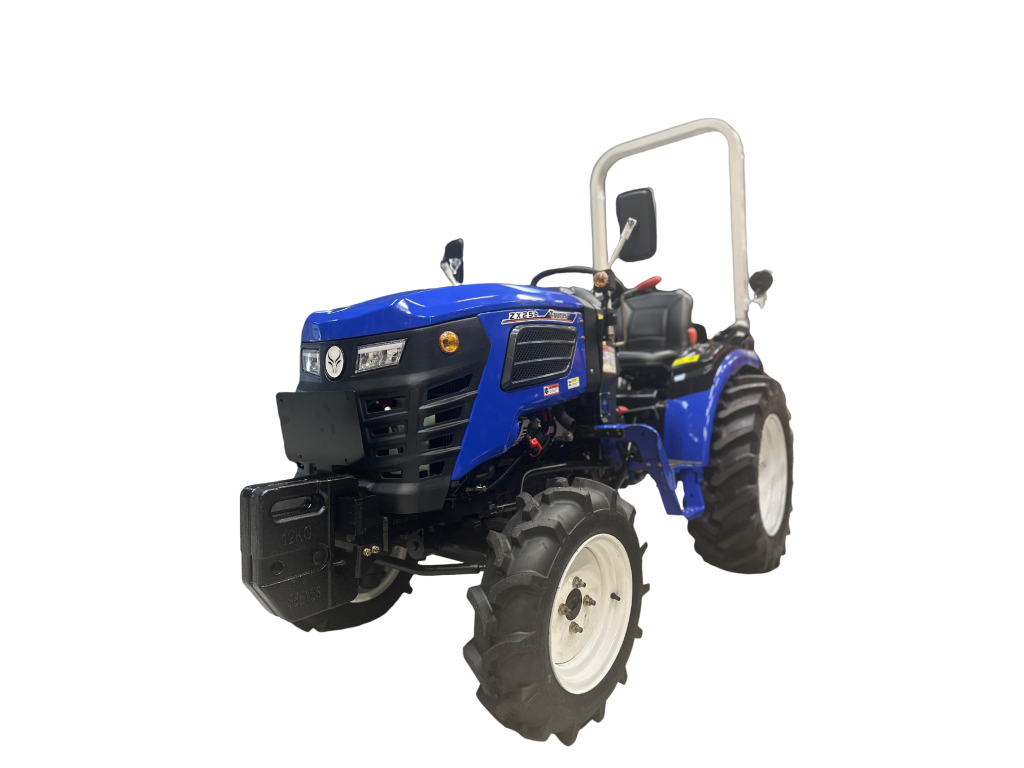

Tauros ZX25b 4×4 – Exceptional four-cylinder with extra power
The Tauros ZX25b 4×4 represents a significant step up – thanks to its four-cylinder engine, it delivers up to 30 hp, making it an outstanding machine in its class at a price comparable to nearly new Japanese compact tractors.
With its power, attractive price and compact size, the Tauros ZX25b 4×4 is one of the best-value compact tractors in its category.
Both models allow adjustment of front and rear wheel track width using special spacers – a major advantage for users with specific requirements. The ability to tailor wheel track width to particular applications improves stability, allows better adaptation to row crops and different implements.
This feature is appreciated by small growers, vineyard owners and small-scale farmers alike.
More information on track-width extensions here: 👉 ZX25 Wheel Track Extension Spacers – E120
The Tauros ZX25 series offers high build quality, compact design and excellent equipment, including the option for road registration (number plate).

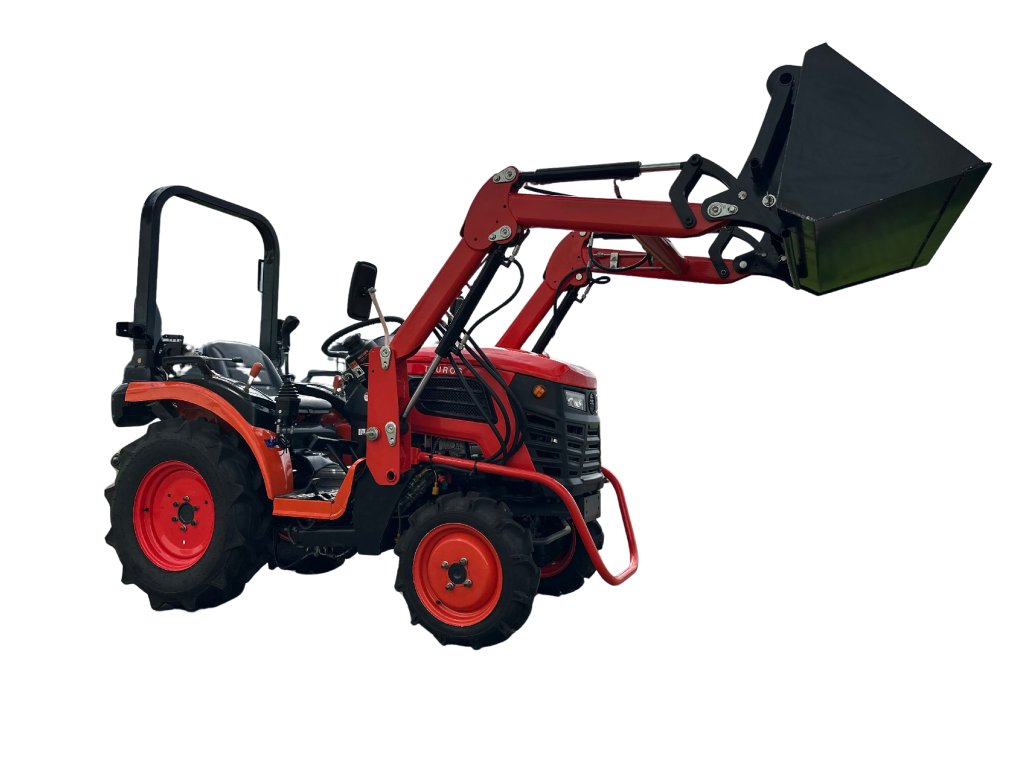

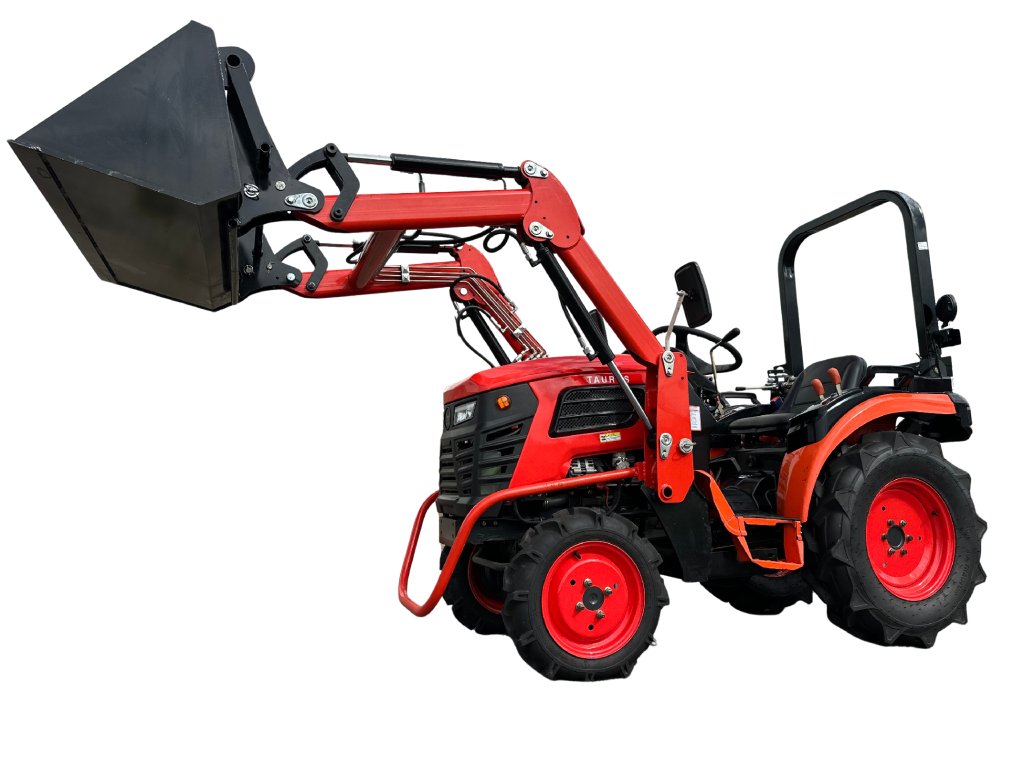

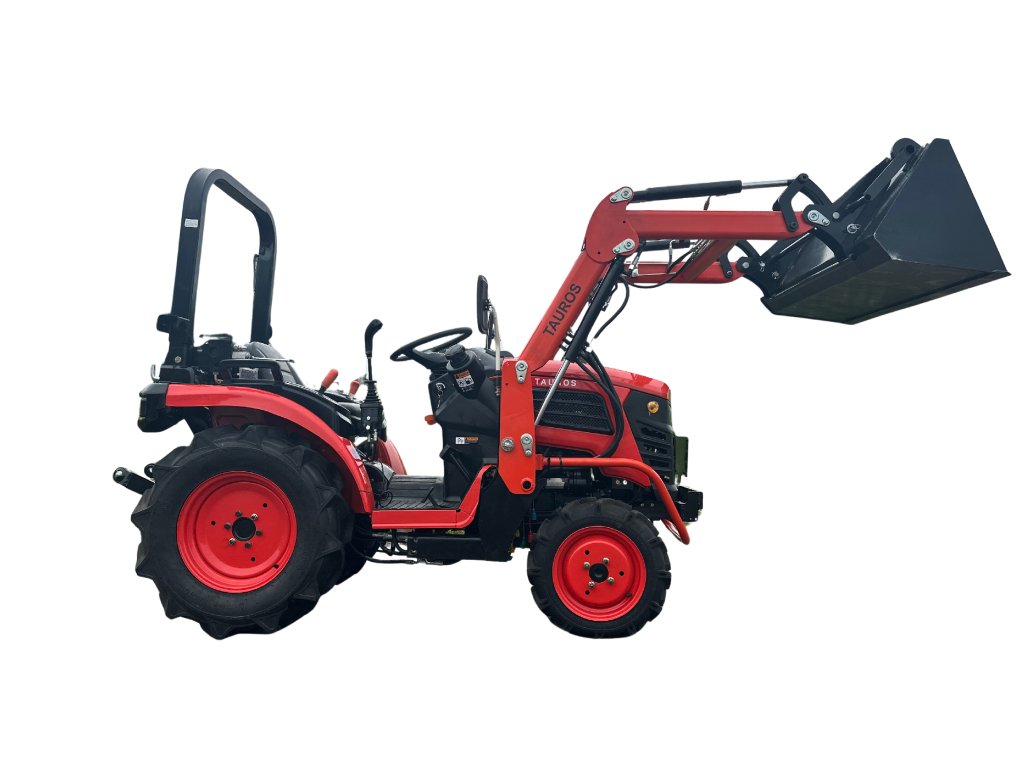

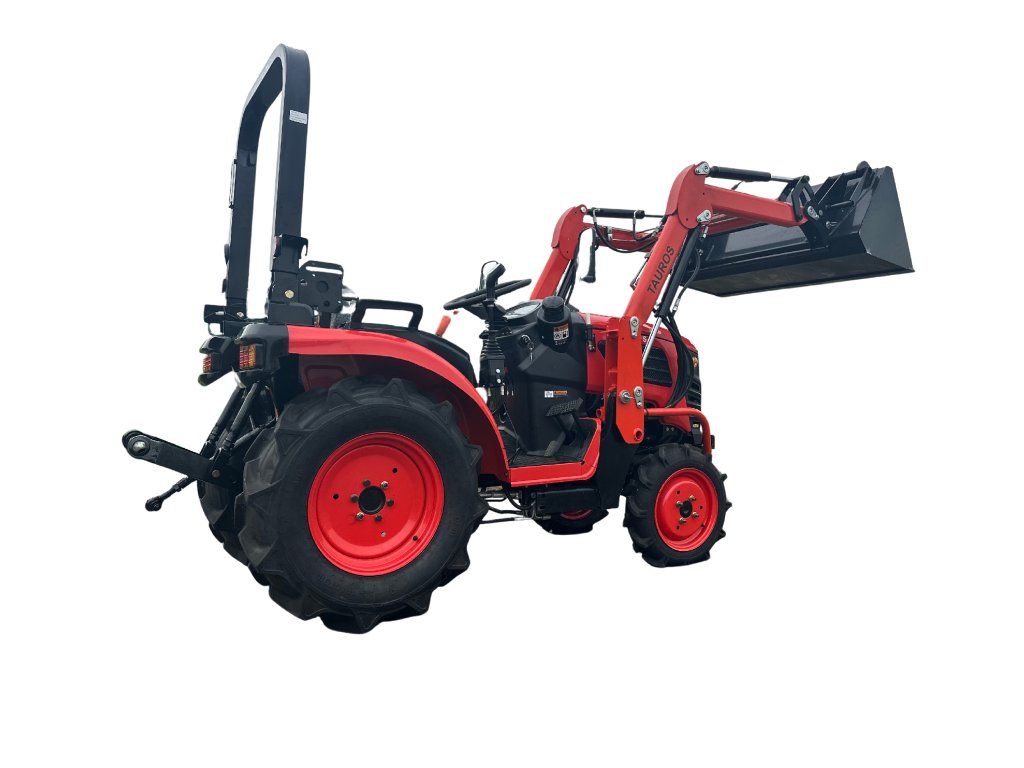

They are also available with the TZ02 front loader, which significantly expands handling capabilities – enabling easy loading, unloading and transport of soil, gravel, compost, manure and bulk materials, as well as pallet handling, snow clearing and maintenance of paved areas and municipal spaces.

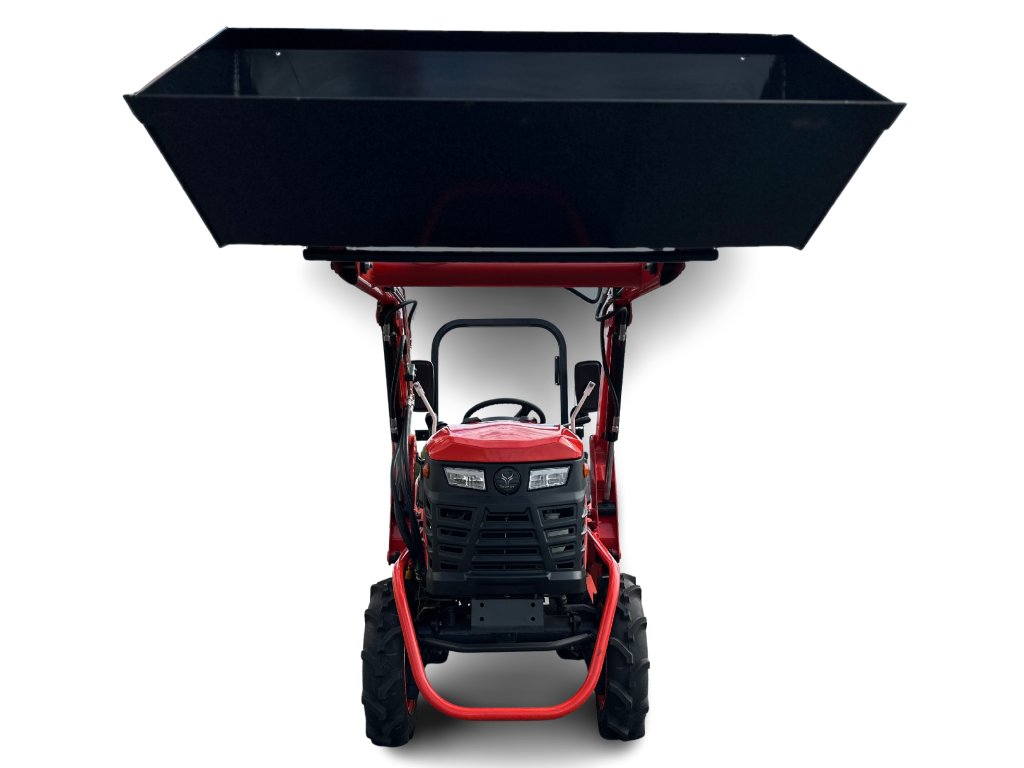

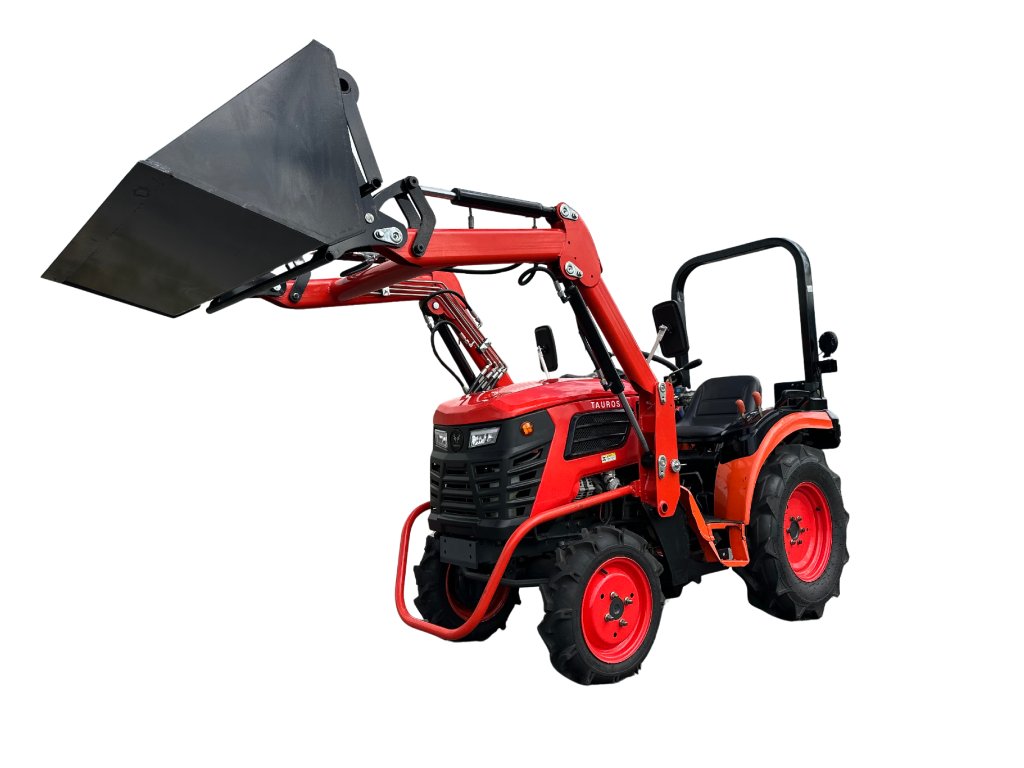

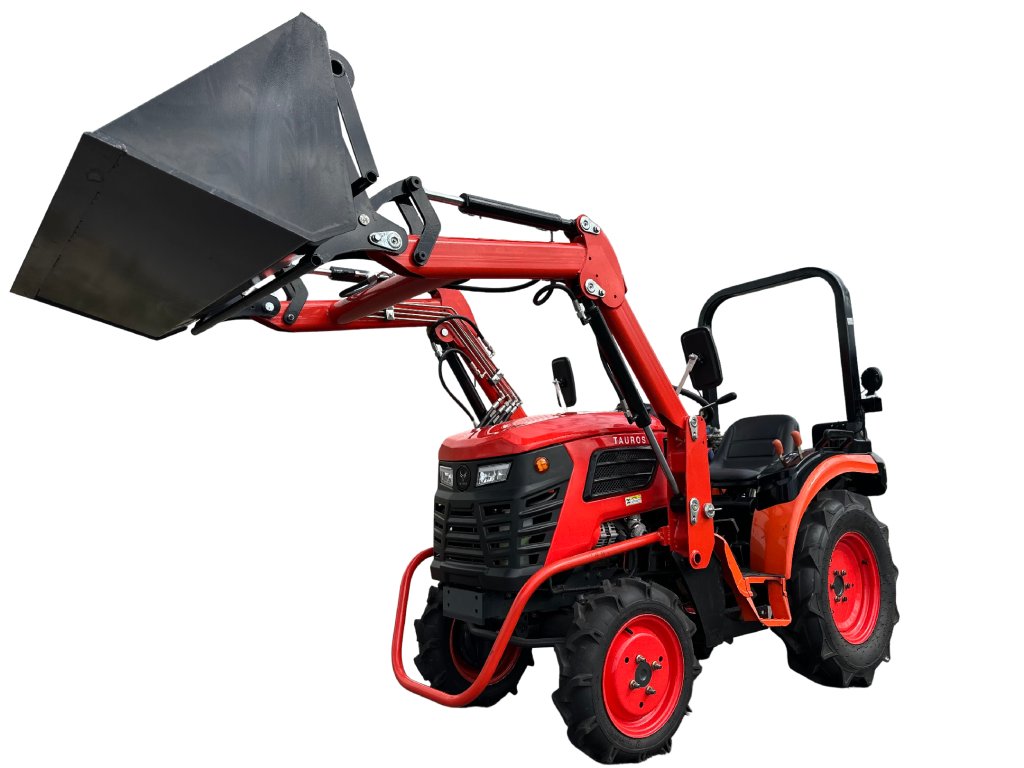

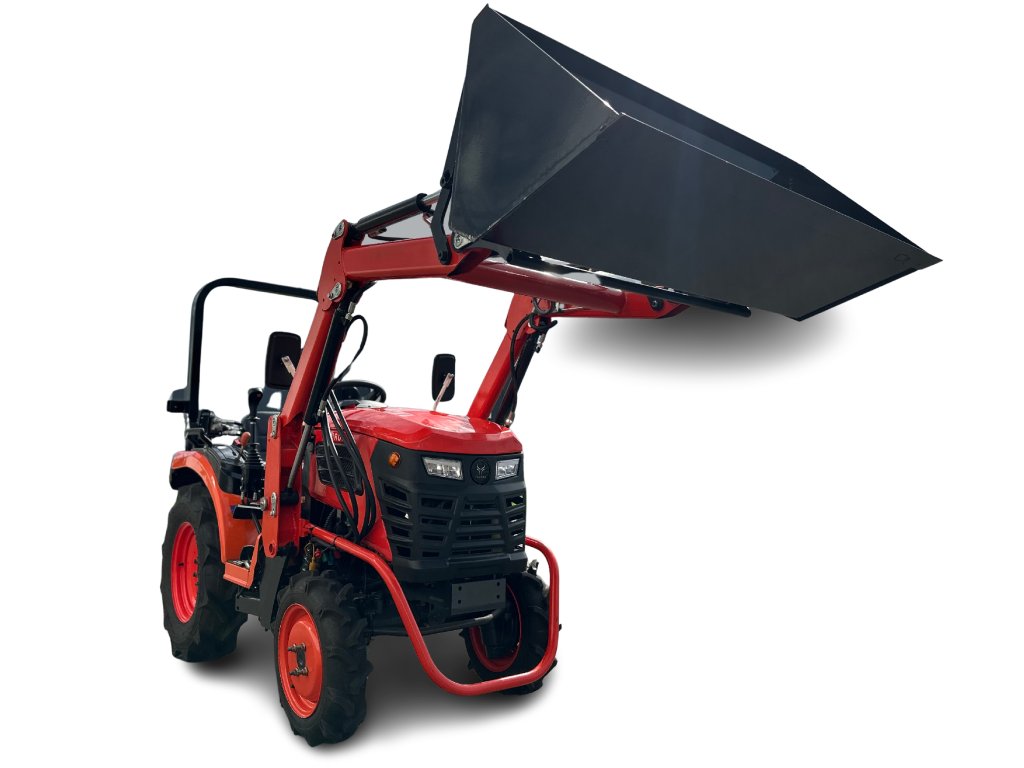

TZ02 Front Loader – a versatile helper for everyday work
The TZ02 mini front loader is designed to turn the compact Tauros ZX25 into a versatile working machine. With hydraulic control, easy attachment and robust construction, it handles a wide range of tasks not only in agriculture, but also in construction, municipal services and land maintenance.
Technical specifications – TZ02 Front Loader
|
Parametr |
TZ02 |
|
Compatible tractor |
Tauros ZX25 |
| Max. lift height at mounting point (H) |
2100 mm |
|
Dump height (A) |
1730 mm |
|
Overload height (L) |
1990 mm |
|
Dump reach (W) |
910 mm |
|
Pivot point height (B) |
1080 mm |
|
Roll-back angle (X) |
31° |
|
Dump angle (Z) |
33° |
| Digging depth (S) |
90 mm |
|
Bucket width |
1250 mm |
|
Bucket volume |
0,16 m³ |
|
Rated lifting capacity |
200 kg |
WHY ZX25?
COMPACTNESSA fully equipped compact tractor with 4×4 drive, differential lock, protective frame, and rear PTO for connecting a wide range of attachments. |
COMFORTEasy and comfortable operation, with ergonomics that bring a whole new working experience in the garden, field, meadow or during material transport. |
MANOEUVRABILITYAn excellent turning radius allows work on small plots and gardens. This tractor offers the functions and equipment of a larger tractor in a compact size. |
AFFORDABLE YET POWERFULComprehensive equipment with adjustable front and rear wheel track width at an unbeatable price. |
| Model | Tauros ZX25a | TAUROS ZX254 | Tauros ZX25b | |
|---|---|---|---|---|
| POWER | Power output | 18.5 kW / 25.16 hp | 18.5 kW / 25.16 hp | up to 22.37 kW / 30 hp |
|
Engine displacement (cc) |
1132 | 1132 | 1508 | |
|
Front drive (4WD) |
Yes | Yes | Yes | |
| Engine type | XY377-A | XY377-C | XY477-25 | |
| Number of cylinders | 3 | 3 | 4 | |
| Fuel | diesel | diesel | diesel | |
| Fuel tank capacity | 14 l | 14 l | 14 l | |
| Rated engine speed | 3200 rpm | 3200 rpm | 3200 rpm | |
| Attachment drive | Shaft (PTO) | Shaft (PTO) | Shaft (PTO) | |
| Rated PTO power | 17,3 KW/23,5 hp | 17,3 KW/23,5 hp | 18,5 KW/25 hp | |
| PTO speed (rpm) | 540/1000 | 540/1000 | 540/1000 | |
| Transmission | Mechanical | Mechanical | Mechanical | |
| Number of gears | 9F + 3R | 9F + 3R | 9F + 3R | |
| OTHER PARAMETERS | Reverse speed | min. 1,48 km/h; max. 8,35 km/h | min. 1,48 km/h; max. 8,4 km/h | min. 1,48 km/h; max. 8,6 km/h |
| Forward speed | min. 4,17 km/h; max. 17,7 km/h | min. 4,17 km/h; max. 15 km/h | min. 4,17 km/h; max. 15,4 km/h | |
|
|
1700 | 1700 | 2300 | |
| Weight (kg) | 700 | 695 | 715 | |
| Dimensions(mm) | 2550×960×2055 | 2550×960×1810 | 2635×960×2055 | |
| Working capacity | More than 5000 m2 | More than 5000 m2 | More than 5000 m2 | |
| Hydraulic flow rate | 23,4 l/min | 23,4 l/min | 25,6 l/min | |
| Lifting capacity (kg) | 540 | 540 | 540 | |
|
|
285 | 285 | 285 | |
| Tires (front; rear) | 5-12; 8-16 | 5-12; 8-16 | 5-12; 8-16 | |
| Hydraulic outlets | Yes; 1 circuit | Yes; 1 circuit | Yes; 1 circuit | |
|
Electrical socket |
Yes | No | Yes | |
|
Differential lock |
Yes | Yes | Yes | |
| STANDARDS |
Emission class |
Euro 5 | Euro 5 | Euro 5 |
|
License plate (road approval) |
Yes | Yes | Yes | |
| APPLICATION |
Gardening, viticulture, municipal services |
|||
Tutoriál k užívání malotraktoru Tauros ZX25
Add a comment
List of discussions
JT
Tauros
Josef Tajovský
Tauros
Josef Tajovský
Má převodovka u 25 synchrony?
Děkuji za info.
TT
Mechanická převodovka
Tauros tým
Mechanická převodovka
Tauros tým
Dobrý den,
model Tauros ZX25 4x4 je vybaven mechanickou převodovkou s kombinací selektivního a konstantního převodu. Při řazení je nutné vždy plně sešlápnout spojku a měnit rychlostní stupeň při vhodných otáčkách motoru.
M
Taurus 25b
Martin
Taurus 25b
Martin
Mám problém rozbalit manuál. Škoda že ho nedávají v papírové podobě bylo by to ideální. Jinak stroj funguje parádně ale kdybych nebyl traktorysta tak bych měl problémy.
M
Martin
Martin
Pán Knoflíček mě obratem poslal manuál. Perfektní odezva. Můžu jen doporučit
TT
Manuál
Tauros tým
Manuál
Tauros tým
Dobrý den,
heslo k otevření manuálu vám sdělí vedoucí prodeje pan Knoflíček (viz kontakty). Děkujeme a přejeme spoustu zážitků se ZX25.
HM
Manuál
Hana Musilová
Manuál
Hana Musilová
Dobrý den,
chtěla jsem si otevřít uživatelský manuál a chce to po mě heslo k otevření.
Můžete mi prosím poradit, jak otevřít. Děkuji a přeji hezký den. S pozdravem Musilová
TT
Manuál
Tauros tým
Manuál
Tauros tým
Dobrý den,
spojte se prosím s vedoucím prodeje (viz kontakty). Sdělí vám heslo k otevření manuálu.
